PiCAN FD Zero for Raspberry Pi Zero

£47.88 inc VAT
Original price £39.90 - Original price £39.90
Original price
£39.90
£39.90 - £39.90
Current price £39.90
ex VAT
SKU RSP-PICANFDZ

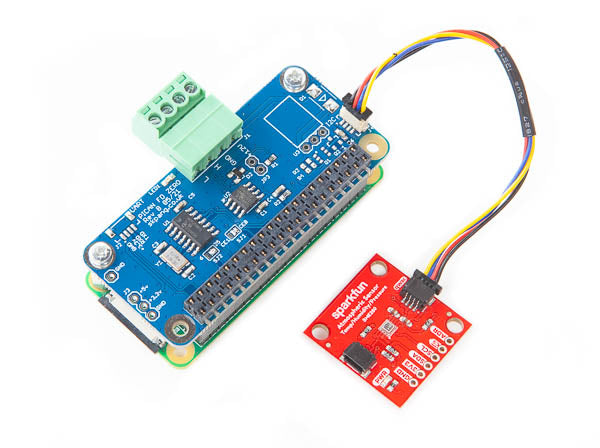

This PiCAN FD Zero board provide CAN-Bus FD capability for the Raspberry Pi Zero. It uses the Microchip MCP2518FD CAN controller with MCP2562FD CAN transceiver. Connection are made via 4way plug in terminal. CAN_H, CAN_L and GND.

The improved CAN FD extends the length of the data section to up to 64 bytes per frame and a data rate of up to 8 Mbps.

Pi Zero, sensor board and cable not included.

Features

  • Microchip MCP2518FD CAN Controller
  • Microchip MCP2562FD CAN transceiver
  • Arbitration Bit Rate up to 1Mbps
  • Data Bit Rate up to 8Mbps
  • CAN FD Controller modes
  • Mixed CAN 2.0B and CANFD mode
  • CAN 2.0B mode
  • Conforms to ISO 11898-1:2015
  • High speed SPI Interface
  • 4 way plug-in terminal for CAN and power
  • 120Ω terminator ready
  • LED indicator (GPIO 22)
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25 or GPIO6
  • Qwiic (I2C) connector for extra sensors
