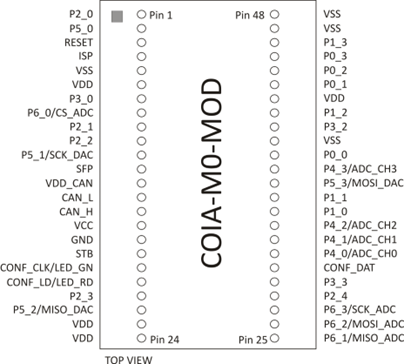

CANopenIA-M0 Module with sockets
£70.20
inc VAT
Original price
£58.50
-
Original price
£58.50
Original price
£58.50
£58.50
-
£58.50
Current price
£58.50
ex VAT
SKU ESS-COIA-M0-S
The CANopenIA-M0 SoM implements the CANopen protocol compliant to the CiA standards.
CANopenIA-M0 is based on the NXP Cortex M0 32-bit micro controller. A derivative with integrated CAN transceiver is used to minimize the external components needed around the protocol chip. The Cortex architecture in conjunction with the optimized firmware design results in a very high performance. Time delays between in our outgoing CAN PDOs and hardware events are brought down to 15 micro seconds.
This high performant and ready to use CANopen solution is available as a chip or as a module. The module implements around the chip the clock generation, a serial EEPROM to store the configuration data and two LEDs to signal the CANopen state. To become familiar with COIA-M0 a starter kit and evaluation kit is available.
Entries in the object dictionary, the I/O ports and the SDO and PDO behavior is configured with a straightforward setup tool.
This high performant and ready to use CANopen solution is available as a chip or as a module. The module implements around the chip the clock generation, a serial EEPROM to store the configuration data and two LEDs to signal the CANopen state. To become familiar with COIA-M0 a starter kit and evaluation kit is available.
Entries in the object dictionary, the I/O ports and the SDO and PDO behavior is configured with a straightforward setup tool.
Features
- CiA301 version 4.2 (CANopen application layer and communication profile),
- CiA305 version 2.2.14 (Layer setting services and protocols) and
- CiA401 version 3.0 (Device profile for generic I/O modules).
- The fast and high-performant internal CAN controller works with 32 bit message objects and supports all CANopen data rates up to 1 Mbps
- CANopen protocol implemented in flash
- Up to four transmit process data objects (TPDO)
- Up to four receive process data objects (RPDO)
- Transmission types configurable by SDO access to object dictionary
- Fast response times down to 15 μs due to the architecture optimized CANopen implementation
CANopenIA-M0 Setup Utility
With the CANopenIA-M0 Setup utility all features supported by the CANopenIA-M0 chip are configured in a very easy manner. The setup utility generates a data set to be downloaded to the chip and a device configuration file which can be read by third party CANopen configuration tools.
For configuration and test any PEAK PCAN-USB PC interface is required.
For testing a CANopen Monitor such as CANopen Magic should be used.
