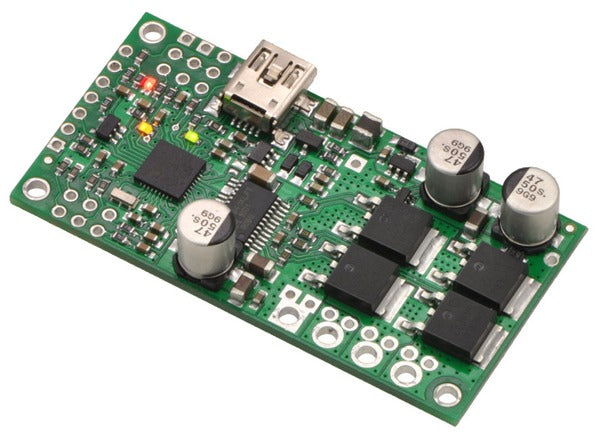

Pololu Simple High-Power Motor Controller 18v25

£42.60 inc VAT
Original price £35.50 - Original price £35.50
Original price
£35.50
£35.50 - £35.50
Current price £35.50
ex VAT
SKU SMPCTRL18V25
The Pololu Simple Motor Controllers are versatile, general-purpose motor controllers for brushed, DC motors. A wide operating range of up to 5.5–40V and the ability to deliver up to several hundred Watts in a small form factor make these controllers suitable for many motor control applications. With a variety of supported interfaces— USB for direct connection to a computer, TTL serial for use with embedded systems, RC hobby servo pulses for use as an RC-controlled electronic speed control (ESC), and analog voltages for use with a potentiometer or analog joystick— and a wide array of configurable settings, these motor controllers make it easy to add basic control of brushed DC motors to a variety of projects. Although this motor controller has many more features than competing products, a free configuration utility (for Windows 7, Vista, Windows XP, and Linux) simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via USB.

Key Features
  • Simple bidirectional control of one DC brush motor.
  • 5.5 V to 30 V (18v7, 18v15, and 18v25) or 40 V (24v12 and 24v23) operating supply range.
  • 7 A to 25 A maximum continuous current output without a heat sink, depending on controller model
  • Four communication or control options:
  • USB interface for direct connection to a PC.
  • Logic-level (TTL) serial interface for direct connection to microcontrollers or other embedded controllers.
  • Hobby radio control (RC) pulse width interface for direct connection to an RC receiver or RC servo controller.
  • 0–3.3 V analog voltage interface for direct connection to potentiometers and analog joysticks.
  • Simple configuration and calibration over USB with free configuration program (Windows 7, Vista, Windows XP, and Linux compatible).
