WiFly Shield

£57.36 inc VAT
Original price £47.80 - Original price £47.80
Original price
£47.80
£47.80 - £47.80
Current price £47.80
ex VAT
SKU AR-WIFLY

sku: WRL-09954

This new version breaks out the PI09, FORCE WAKE, and the hardware reset lines. It also has a different crystal and uses the RN-131C.

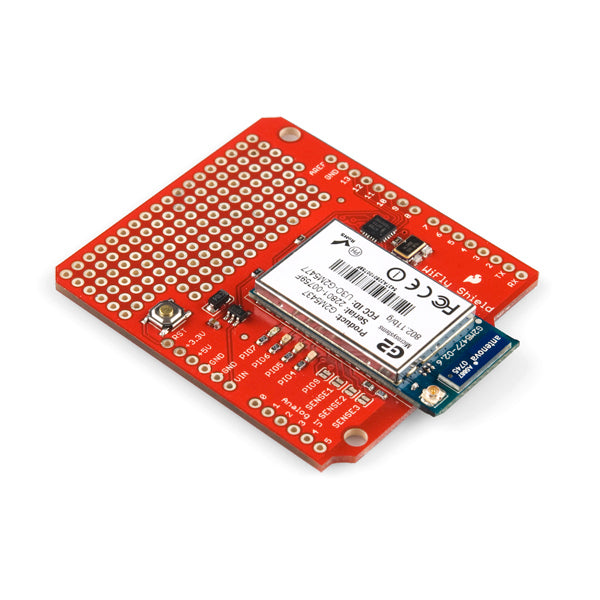

The WiFly Shield equips your Arduino the ability to connect to 802.11b/g wireless networks. The featured components of the shield are a Roving Network's RN-131G wireless module and an SC16IS750 SPI-to-UART chip. The SPI-to-UART bridge is used to allow for faster transmission speed and to free up the Arduino's UART.

Power is taken from the Vin pin of your Arduino, regulated to 3.3V, and provided to both the RN-131G and the SC16IS750. You'll communicate with the WiFly Shield over SPI using Arduino digital pins 10-13 (CS, MOSI, MISO, SCLK respectively).

The shield includes the RN-131G, SC16IS750 and their supporting components. The shield also provides a small prototyping area, with 0.1" spaced holes. Headers are not included. We recommend the 6 and 8-pin stackable headers.
