Arduino YÚN

Sold out
£56.28 inc VAT
Original price £46.90 - Original price £46.90
Original price
£46.90
£46.90 - £46.90
Current price £46.90
ex VAT
SKU AR-YUN

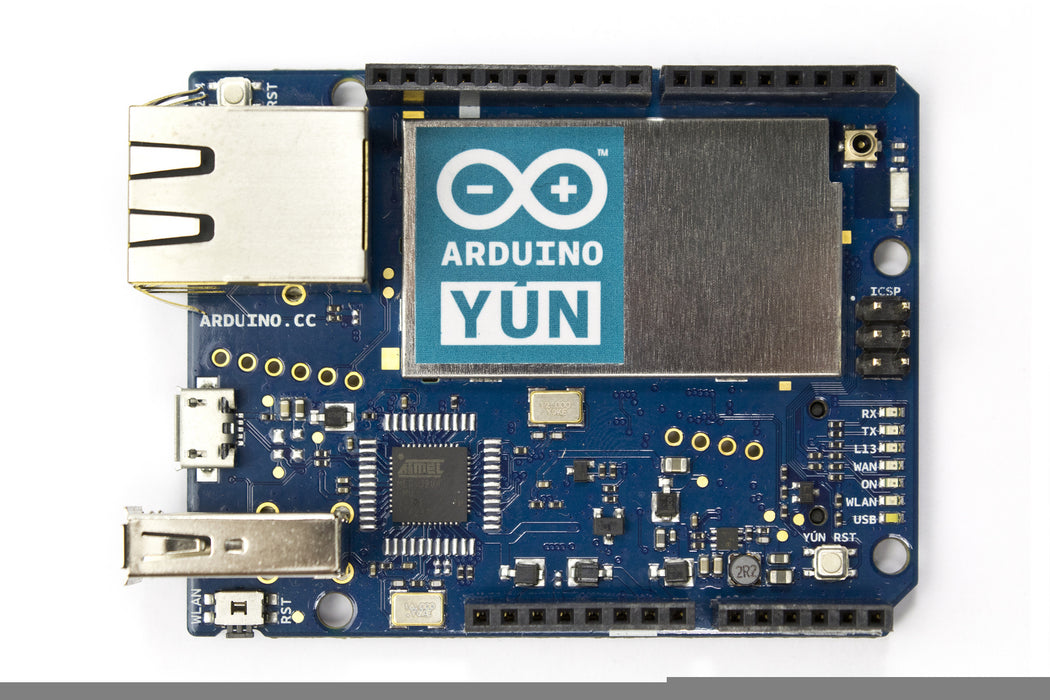

Arduino YÚN is the first member of a new groundbreaking line of wifi products combining the power Linux with ease of use of Arduino.

The first Arduino YÚN is the combination of a classic Arduino Leonardo (based on the Atmega32U4 processor) with a Wifi system-ona-chip running Linino (a MIPS GNU/Linux based on OpenWRT). We embedded the Linux machine directly on the PCB of the Arduino Leonardo and we connected the two so that from Arduino it’s very easy to run commands on the Linux side and use it as an Ethernet and Wifi interface.

Features
  • Microcontroller : ATmega32u4
  • Operating Voltage : 5V
  • Input Voltage (recommended) : 5V via microUSB or PoE 802.3af
  • Input Voltage (limits) : 6-20V
  • Digital I/O Pins : 14
  • PWM Channels : 7
  • Analog Input Channels : 6 (plus 6 multiplexed on 6 digital pins)
  • DC Current per I/O Pin : 40 mA
  • DC Current for 3.3V Pin  : 50 mA
  • Flash Memory : 32 KB (ATmega32u4) of which 4 KB used by bootloader
  • SRAM : 2.5 KB (ATmega32u4)
  • EEPROM : 1 KB (ATmega32u4)
  • Clock Speed :16 MHz
Linux microprocessor
  • Processor Atheros AR9331
  • Architecture MIPS @400MHz
  • Operating Voltage 3.3V
  • Ethernet IEEE 802.3 10/100Mbit/s
  • WiFi IEEE 802.11b/g/n
  • USB Type-A 2.0 Host/Device
  • Card Reader Micro-SD only
  • RAM 64 MB DDR2
  • Flash Memory 16 MB
  • PoE compatible 802.3af card support
