LPG - Isobutane - Propane Gas Sensor MQ-6

£3.96 inc VAT
Original price £3.30 - Original price £3.30
Original price
£3.30
£3.30 - £3.30
Current price £3.30
ex VAT
SKU SEN-MQ6

sku: SEN-09405

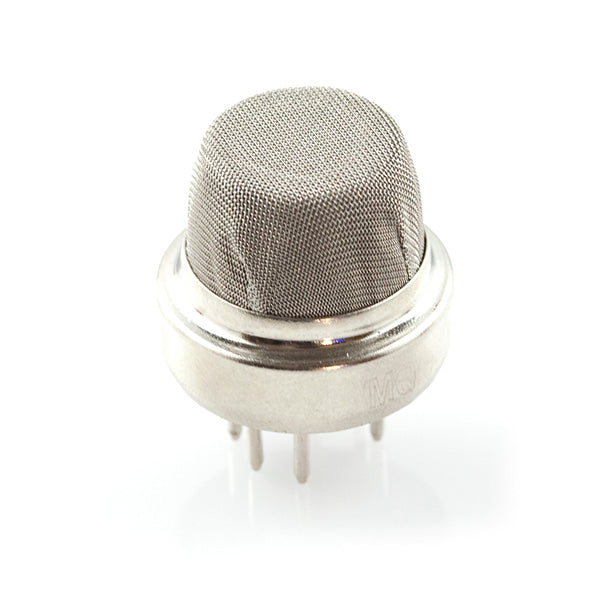

This is a simple-to-use liquefied petroleum gas (LPG) sensor, suitable for sensing  LPG (composed of mostly propane and butane) concentrations in the air. The MQ-6 can detect gas concentrations anywhere from 200 to 10000ppm.

This sensor has a high sensitivity and fast response time. The sensor's output is an analog resistance. The drive circuit is very simple; all you need to do is power the heater coil with 5V, add a load resistance, and connect the output to an ADC.

This sensor comes in a package similar to our MQ-3 alcohol sensor, and can be used with the breakout board below.
