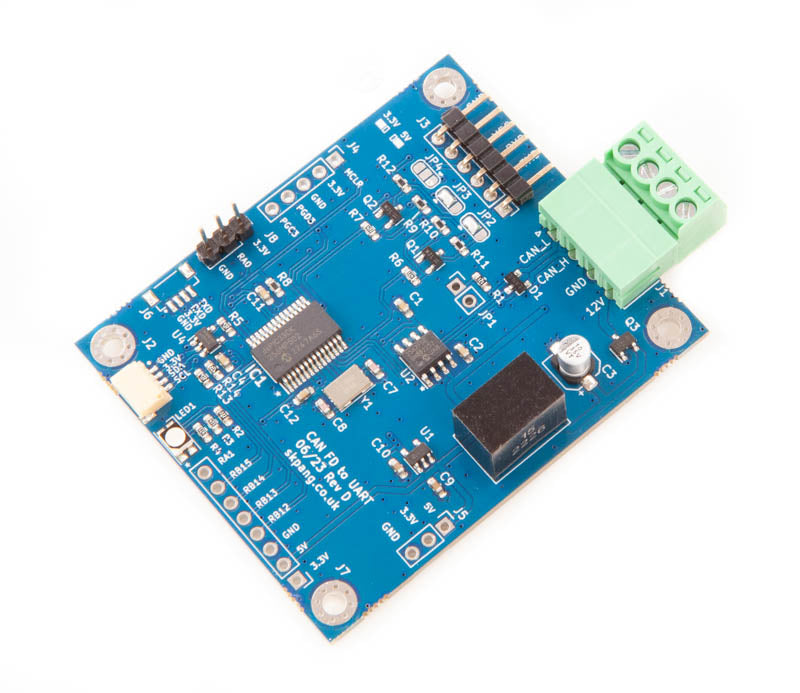

CAN-BUS to UART Converter v2

This board converts CAN-bus data into UART and vice versa. CAN and UART baud rate is programable via a CAN message. The UART has a standard pinout. On board RGB LED for status indication.  Firmware upgradable via  UART.

• Programmable CAN baud rate
• Programmable UART baud rate
• RGB LED status indictor
• Firmware upgradable via UART
• Selectable UART voltages (3.3v or 5v)
• 8 to 24v supply voltage with reverse polarity protection
• Powerful Microchip dsPIC33CK micro controller
• CAN FD compatible. Requires firmware upgrade

• Schematic
• User guide
