ESP32P4 with 10.1" 800x1280 IPS LCD, CAN FD and CAN-Bus

ESP32P4 with 10.1" 800x1280 IPS LCD, CAN FD and CAN-Bus

£238.80 inc VAT
£199.00 - £199.00
£199.00
£199.00 - £199.00
£199.00
ex VAT
SKU ESP32S3-LCD101-CANFD

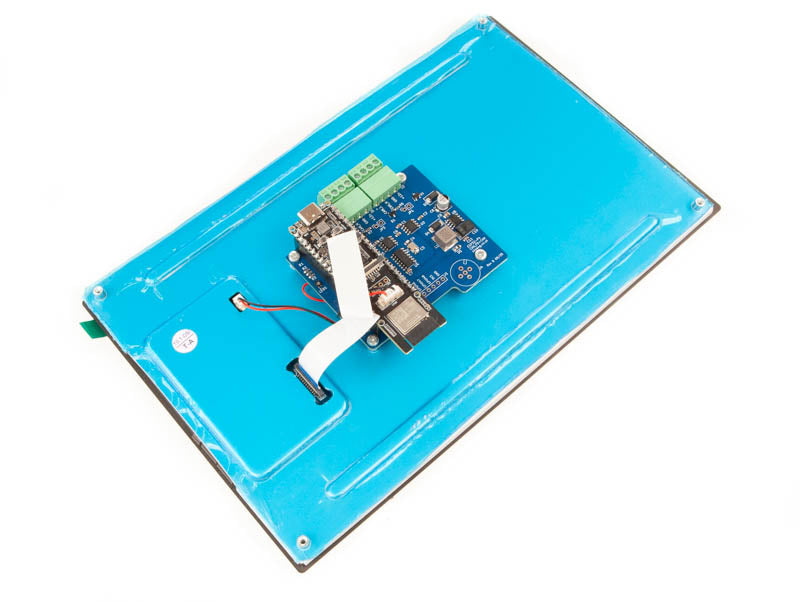

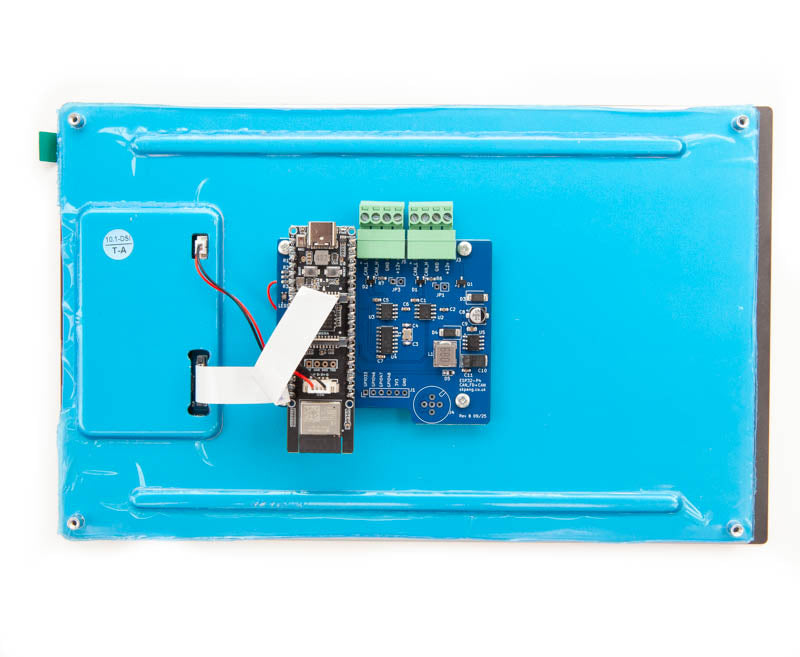

This board has a Waveshare ESP32-P4-WIFI6 module with WiFi , Bluetooth 5 and BLE.  Classic CAN is provided by the ESP32P4 on J3 and CAN FD is provided by a MCP2518FD chip on J5. LCD is a 10.1" IPS DSI capacitive touch.

Features
  • ESP32P4 RISC-V 32-bit dual-core and single-core processors
  • 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
  • Onboard 32MB Nor Flash
  • 32MB PSRAM
  • Bluetooth 5, BLE, Wifi 6
  • Programming via USB-C connector
  • Boot and Reset push button
  • MCP2518FD CAN FD controller and CAN transceiver (J5)
  • Classic CAN transceiver (J3)
  • I2C connector for sensors
  • Supply voltage : 7v to 24v SMPS module with reverse polarity protection
  • RGB LED
  • 10.1" IPS LCD Panel
    • 800x1280 pixels
    • Panel dimension :147.00(W)x239(H)x10.80mm
    • DSI MIPI interface
    • Viewing Angle : 178 degree
    • Brightness(Typ) : 400cd/m2
    • Capacitive Touch controller with multi touch
