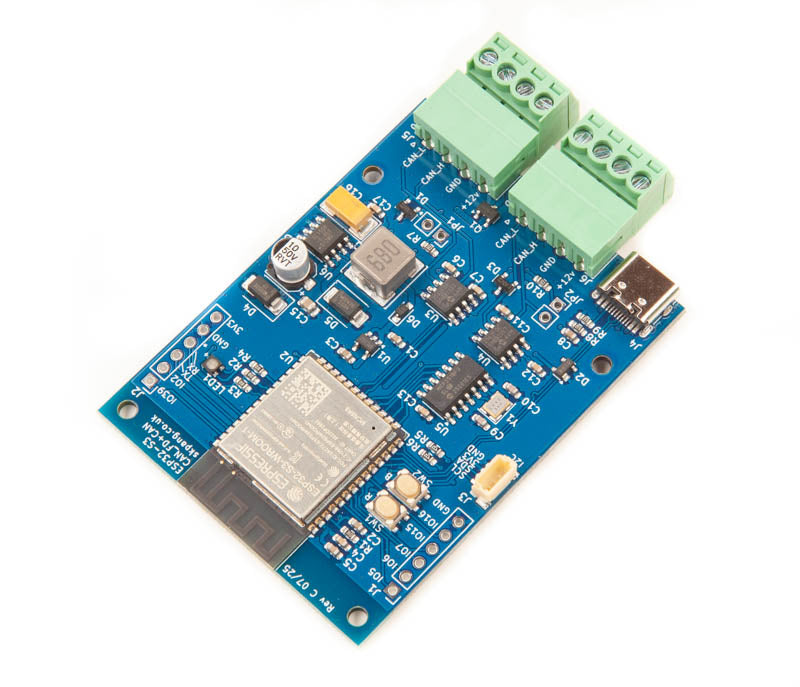

ESP32S3 CAN FD and CAN-Bus board

ESP32S3 CAN FD and CAN-Bus board

£78.00 inc VAT
£65.00 - £65.00
£65.00
£65.00 - £65.00
£65.00
ex VAT
SKU ESP32S3-CANFD




This board has an ESP32-S3-WROOM-1-N8R8 module with WiFi, Bluetooth Classic and BLE Module. Classic CAN is provided by the ESP32S3 and CAN FD is provided by a MCP2518FD chip.

Features
  • ESP32-S3 series of SoCs embedded, Xtensa® dual-core 32-bit LX7 microprocessor (with single precision FPU), up to 240 MHz
  • 8MB Quad SPI flash
  • 8MB PSRAM
  • Bluetooth LE, Bluetooth 5 and Bluetooth mesh
  • Wifi 802.11b/g/n
  • On-board PCB antenna
  • Programming via USB-C connector
  • Boot and Reset push button
  • MCP2518FD CAN FD controller and CAN transceivers

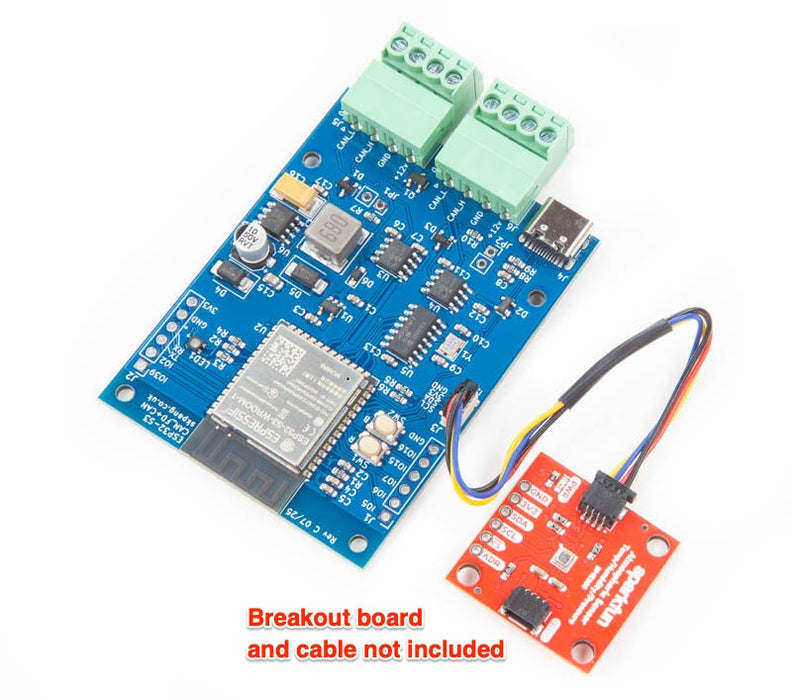

  • I2C connector for sensors
  • Supply voltage : 7v to 24v SMPS module with reverse polarity protection
  • RGB LED
Documents
Ensure to select Board:ESP32S3 Dev Module, USB CDC On Boot: "Enabled", PSRAM: "OPI PSRAM", Upload Mode: "USB-TG CDC (Tiny USB)".
