ESP32S3 NMEA2000 Device Simulator

ESP32S3 NMEA2000 Device Simulator

£80.40 inc VAT
£67.00 - £67.00
£67.00
£67.00 - £67.00
£67.00
ex VAT
SKU ESP32S3-NMEA2000-SIM

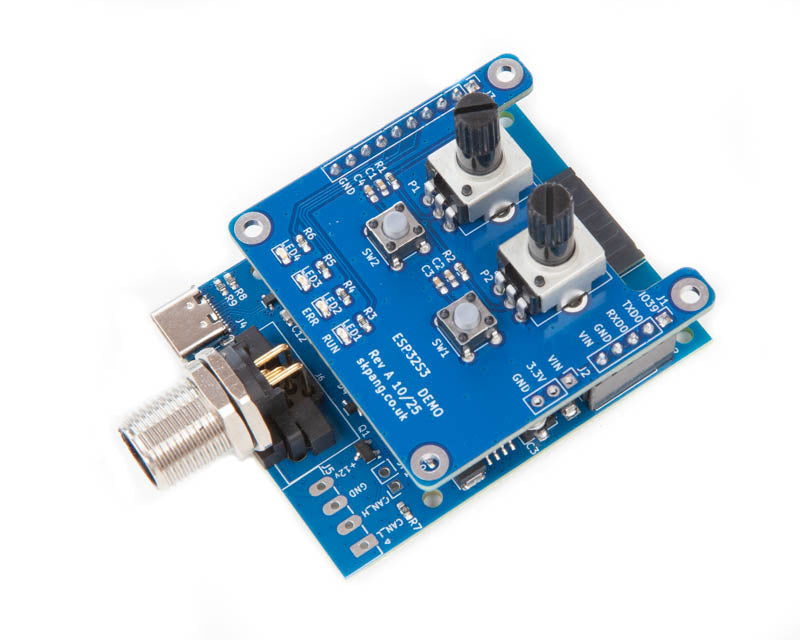

This product consist of two boards. Base board is an ESP32-S3-WROOM-1-N8R8 module with Bluetooth, Wifi and a CAN transceiver. On board is a RGB LED, boot and reset button. Programming is done via USB C. Top board has two potentiometer, two push buttons and four LEDs for NMEA2000 device simulation.

Features
  • ESP32-S3 series of SoCs embedded, Xtensa® dual-core 32-bit LX7 microprocessor (with single precision FPU), up to 240 MHz
  • 8MB Quad SPI flash
  • 8MB PSRAM
  • Bluetooth LE, Bluetooth 5 and Bluetooth mesh
  • Wifi 802.11b/g/n
  • On-board PCB antenna
  • Programming via USB-C connector
  • Boot and Reset push button
  • CAN transceiver
  • I2C connector for sensors
  • Supply voltage : 7v to 24v SMPS module with reverse polarity protection
  • RGB LED
  • Top board:
    • 2x potentiometer
    • 2x push button
    • 4x LED
Documents

Example sketch simulate temperature on PGN 130316, adjustable via pot P1. Humidity on PGN 130313, adjustable via pot P2.
