ESP32P4 with 8" 800x1280 IPS LCD, CAN FD and CAN-Bus

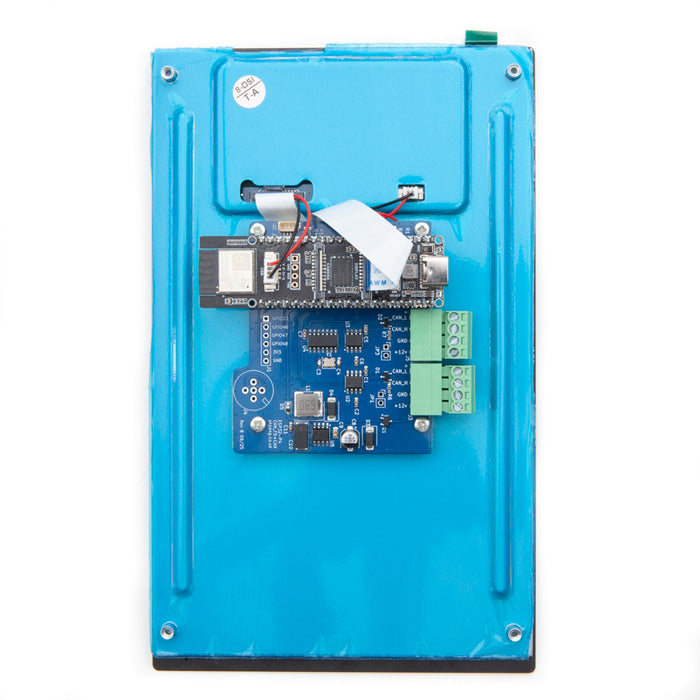

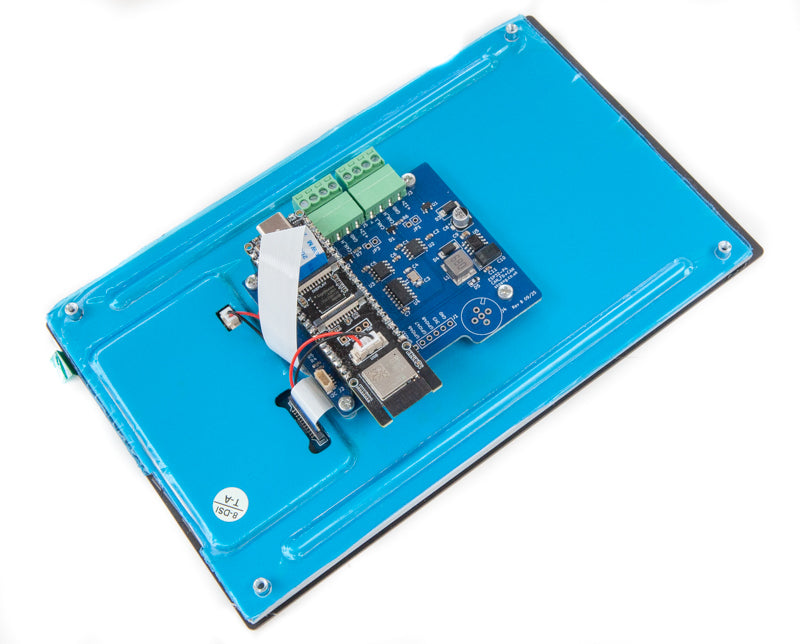

This board has a Waveshare ESP32-P4-WIFI6 module with WiFi , Bluetooth 5 and BLE.  Classic CAN is provided by the ESP32P4 on J3 and CAN FD is provided by a MCP2518FD chip on J5. LCD is a 8" IPS DSI capacitive touch.

• ESP32P4 RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Onboard 32MB Nor Flash
• 32MB PSRAM
• Bluetooth 5, BLE, Wifi 6
• Programming via USB-C connector
• Boot and Reset push button
• MCP2518FD CAN FD controller and CAN transceiver (J5)
• Classic CAN transceiver (J3)
• I2C connector for sensors
• Supply voltage : 7v to 24v SMPS module with reverse polarity protection
• RGB LED
• 8" IPS LCD Panel
  • 800x1280 pixels

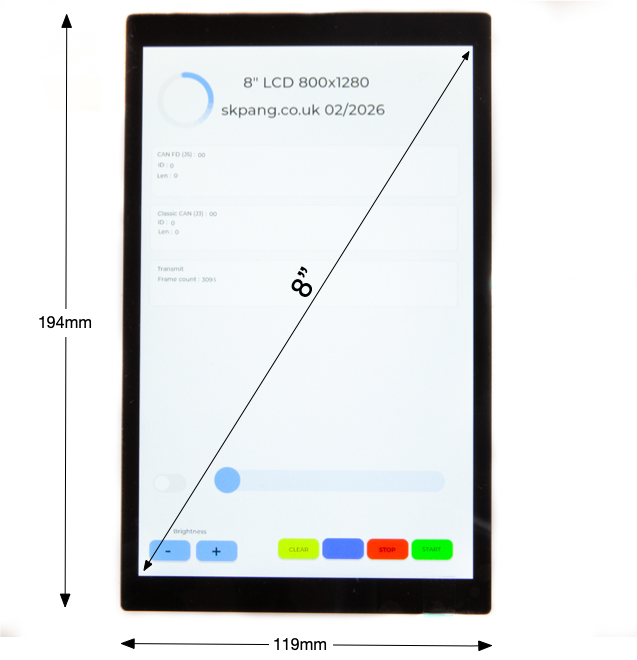

  • Panel dimension :119.00(W)x194(H)x9.50mm
  • DSI MIPI interface
  • Viewing Angle : 178 degree
  • Brightness(Typ) : 400cd/m2
  • Capacitive Touch controller with multi touch

Documents

• Schematic
• Demo code
