30:1 Metal Gearmotor 37Dx52L mm with 64 CPR Encoder

£33.48 inc VAT
Original price £27.90 - Original price £27.90
Original price
£27.90
£27.90 - £27.90
Current price £27.90
ex VAT
SKU M29MG37ENC

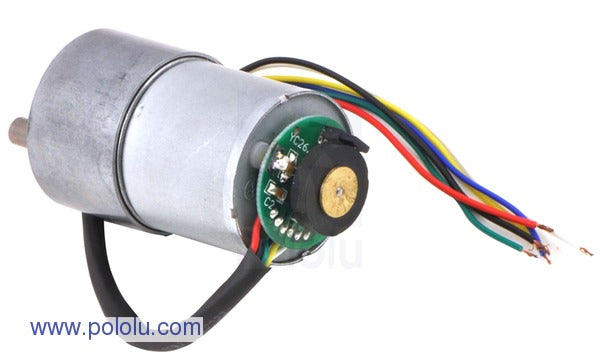

This 2.54" x 1.45" x 1.45" gearmotor is a powerful 12V motor with a 30:1 metal gearbox and an integrated quadrature encoder that provides a resolution of 64 counts per revolution of the motor shaft, which corresponds to 1856 counts per revolution of the gearbox's output shaft. These units have a 0.61"-long, 6 mm-diameter D-shaped output shaft.

Key specs at 12 V: 350 RPM and 300 mA free-run, 110 oz-in (8 kg-cm) and 5 A stall.

Gearmotor Dimensions
The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws. These mounting holes form a regular hexagon and the centers of neighboring holes are 15.5 mm apart. You can use our custom 37D mm metal gearmotor bracket (shown in the left picture below) to mount the gearmotor to your project via these mounting holes and the screws that come with the bracket.

Specifications

  • Size:  37D x 64L mm
  • Weight:  7.5 oz
  • Shaft diameter:  6 mm
  • Gear ratio:  30:1
  • Free-run speed @ 12V:  350 rpm
  • Free-run current @ 12V:  300 mA
  • Stall current @ 12V:  5000 mA
  • Stall torque @ 12V:  110 oz in
  • Free-run speed @ 6V:  175 rpm1
  • Free-run current @ 6V:  250 mA1
  • Stall current @ 6V:  2500 mA1
  • Stall torque @ 6V:  55 oz in1
  • Lead length:    11 in

Notes: 1
This motor will run at 6 V but is intended for operation at 12 V.
