Serial Enabled 16x2 LCD - Black on Green 3.3V

Sold out
£20.04 inc VAT
Original price £16.70 - Original price £16.70
Original price
£16.70
£16.70 - £16.70
Current price £16.70
ex VAT
SKU LCDS-GRN-3

sku: LCD-09066

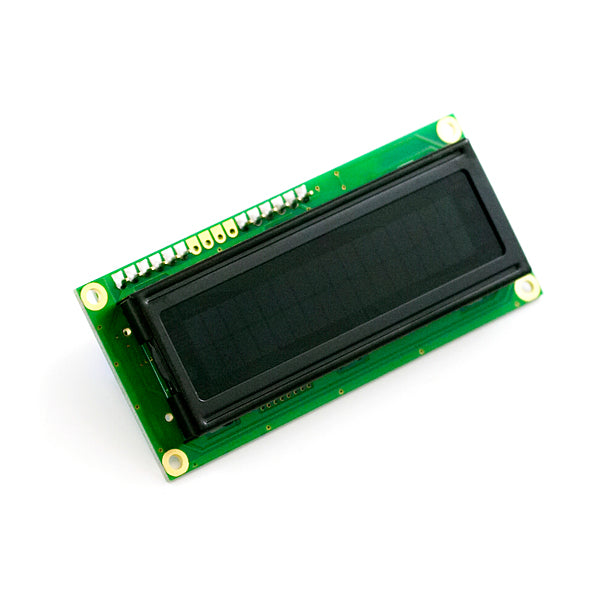

The serial enabled LCD allows you to control a parallel based LCD over a single-wire serial interface. Included in this product is a black on green 16x2 LCD connected to our serial backpack. The backpack, based around a PIC16LF88, takes a TTL serial input and prints the characters it receives onto the LCD. The installed firmware allows for a number of special commands so you can clear the screen, adjust the backlight brightness, turn the display on/off, and more.

Communication with SerLCD requires 3.3V TTL serial at a default baud rate of 9600bps (8-N-1). You can adjust the baud to any standard rate between 2400 and 38400bps. The power, ground and RX pins are all broken out to a 3.5mm pitch screw terminal.

SerLCD has the ability to dim the backlight to conserve power if needed. There is also a potentiometer on the backpack to adjust the contrast.

Note: Though the silkscreen may say '5V', this is a 3.3v Serial LCD. Connect to a 3.3v power source.

Features

  • PIC 16LF88 utilizes onboard UART for greater communication accuracy
  • Greater processing speed at 10MHz
  • Incoming buffer stores up to 80 characters
  • Backlight transistor can handle up to 1A
  • Pulse width modulation of backlight allows direct control of backlight brightness and current consumption
  • All surface mount design allows a backpack that is half the size of the original
  • Faster boot-up time
  • Boot-up display can be turned on/off  via firmware
  • Dimensions: 1.425x3.15" - 1" Thick
