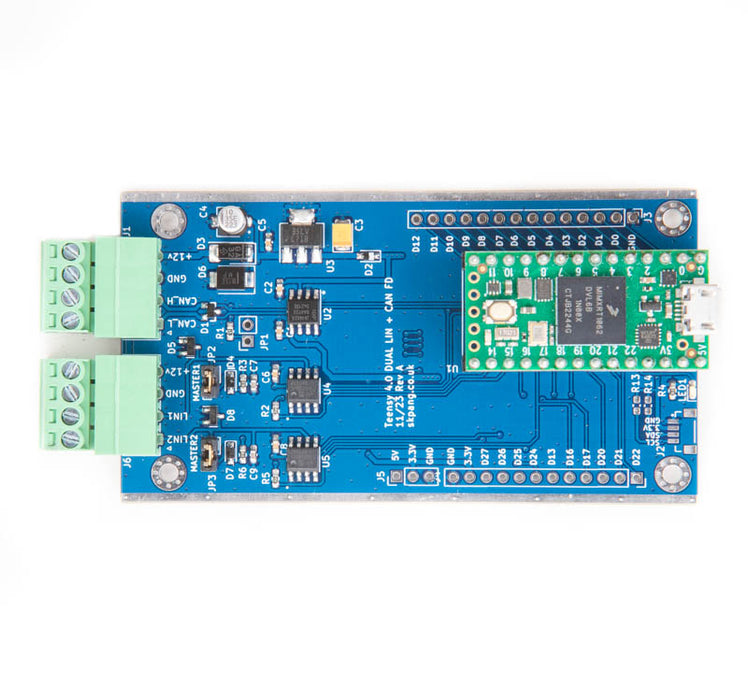

Teensy 4.0 Dual LIN and CAN FD board Include Teensy 4.0

This is a CAN FD and 2 channel LIN-bus board with a Teensy 4.0 (included). It has on board 5v regulator and reverse voltage protection. CAN FD and LIN-bus transceivers. The LIN-Bus is provided by the Microchip MCP2004A.

• Teensy 4.0 (installed)
• On board voltage regulator (Input voltage  range 7v to 12v)
• Reverse supply voltage protection
• Classic CAN or CAN FD
• 120R terminator

• 2x LIN driver by Microchip MCP2004A.
• Up to 20k baud on LIN
• With ESD protection

• Schematic
• Dual LIN NCV730 RGB LED demo sketch

NCV730 RGB LED breakout board to be purchased separately.
