Teensy 4.0 NMEA 2000 MFD with 800x480 5" Touch LCD

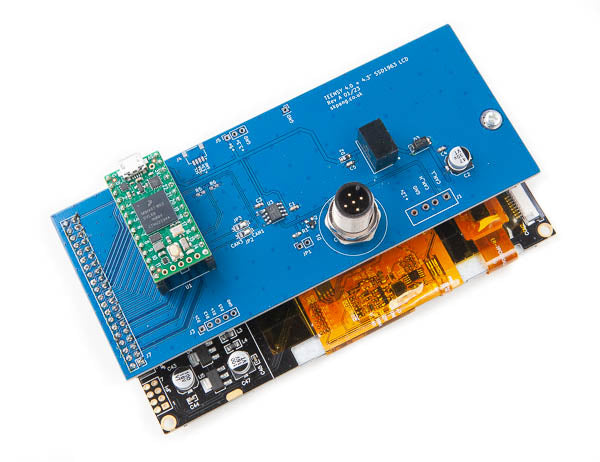

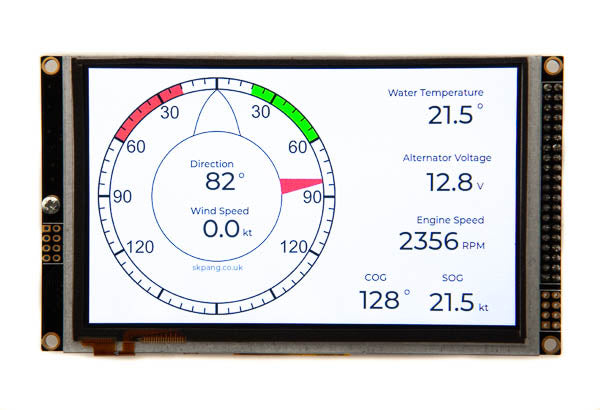

This is a Teensy 4.0 (installed) board with a Micro-C connector for use on a NMEA2000 network. This board includes a 800x480 5.0" capacitive touch screen with SSD1963 LCD controller. Connection to Teensy is via 16bit parallel port. The board can be power by the NMEA2000 network with on board SMPS supply.

 Graphic library by LVGL. UI editor by SquareLine Studio.



• Teensy 4.0 (installed)
• 800x480 5.0" capacitive touch screen
• Micro-C connector for NMEA 2000 network
• Power by NMEA 2000 with on board SMPS supply

• Schematic
• Demo software
