Teensy 4.0 OBDII CAN-Bus ECU Simulator include Teensy 4.0

Teensy 4.0 OBDII CAN-Bus ECU Simulator include Teensy 4.0

£150.00 inc VAT
£125.00 - £125.00
£125.00
£125.00 - £125.00
£125.00
ex VAT
SKU TEENSY4.0-OBDII-SIM

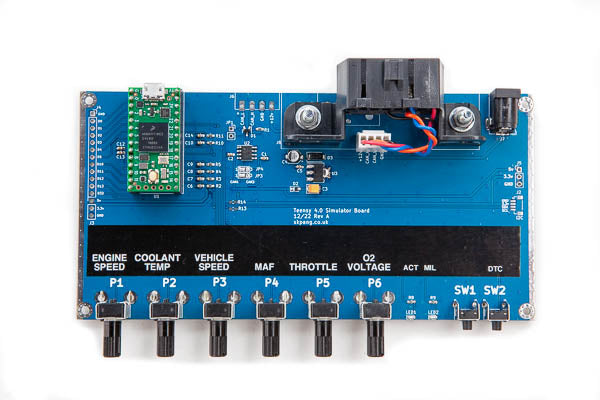

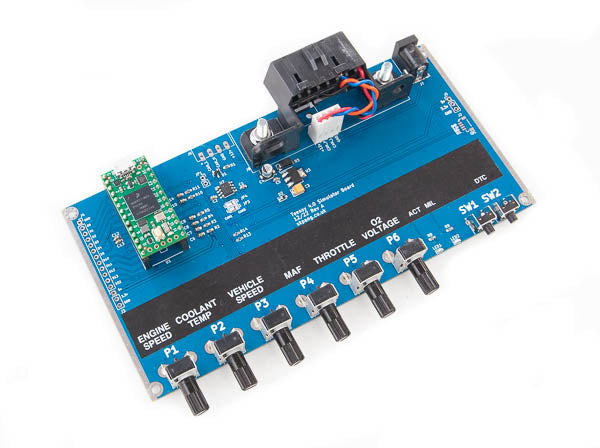

This is a CAN-Bus OBDII ECU simulator using the Teensy 4.0 module (included). Useful for testing OBDII interface and writing diagnostic software. ECU PIDs parameters adjustable via potentiometers.

This board requires a 12v supply. A 12v adapter is included with UK, US, EU, AU plug.




Hardware Features
  • Teensy 4.0 module (installed)
  • Teensy pre-programmed with OBDII ECU simulator firmware
  • 500kb/s CAN speed
  • Open source firmware
  • Female OBDII socket with 12v supply to interface
  • 6x potentiometers for PID adjustment
  • 12v supply. External 12v PSU included with UK, US, EU AU plug
  • Firmware Features :
    • SAE standard J1979. PIDs partially implemented. Mode 01, 02, 03
    • Adjustable PID parameters via potentiometers
    • Engine RPM
    • Throttle position
    • Vehicle speed
    • Coolant temperature
    • MAF airflow sensor
    • O2 sensor voltages
    • Setting and clearing Diagnostic Trouble Codes (DTC)
  • Open source firmware, other PIDs can be added
