Teensy 4.0 with 240x240 LCD and CAN-Bus Micro-C Connector

£69.60 inc VAT
Original price £58.00 - Original price £58.00
Original price
£58.00 - £58.00
Current price £58.00
ex VAT

NMEA 2000

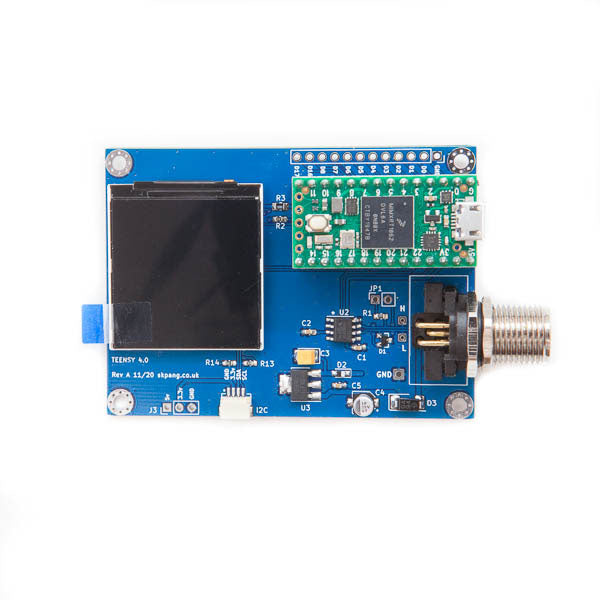

This is a Teensy 4.0 board with a 240x240 IPS LCD and a Micro-C connector. The board can be powered from the 12v Micro-C connector with on board 5v regulator. There is also a 4way 1mm (Qwiic) IC2 connector for external sensors.

  • Teensy 4.0 (installed)
  • CAN connection via Micro-C connector
  • On board voltage regulator (Input voltage  range 7v to 12v)
  • Reverse supply voltage protection
  • 120R terminator ready
  • 1.54" 240x240 wide angle IPS TFT LCD display
  • Qwiic (I2C) connector for extra sensors
The example below takes the readings from a wind and temperature sensor and displays the results on the LCD.
