Teensy 4.1 Triple CAN Board with 240x240 LCD and Ethernet - Retired board

Teensy 4.1 Triple CAN Board with 240x240 LCD and Ethernet - Retired board

Sold out
£0.00 inc VAT
£0.00 - £0.00
£0.00
£0.00 - £0.00
£0.00
ex VAT
SKU T41-3XCANETH-1


This version of the board is now retired. Replacement board Rev C.

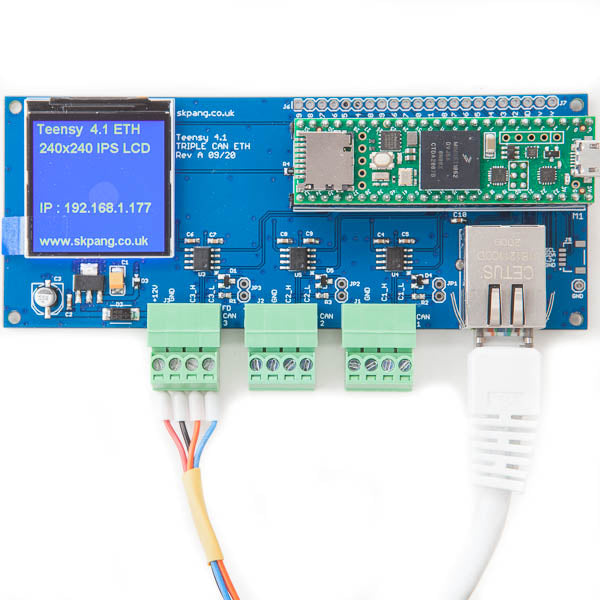

This is a Teensy 4.1 board with triple CAN connections and ethernet magjack. Two CAN 2.0B and one CAN FD. It can be powered by an external +12v DC with reverse voltage protection. Included is also a 240x240 wide angle IPS TFT LCD display.

Features
  • Teensy 4.1 (installed)
  • On board voltage regulator (Input voltage  range 7v to 12v)
  • Reverse supply voltage protection
  • 120R terminator
  • Two CAN 2.0B and one CAN FD connection
  • 1.54" 240x240 wide angle IPS TFT LCD display (installed)
  • Ethernet Magjack
Documents
