Papilio Joystick Wing Kit

£13.08 inc VAT
Original price £10.90 - Original price £10.90
Original price
£10.90
£10.90 - £10.90
Current price £10.90
ex VAT
SKU PAP-JOYSTICK

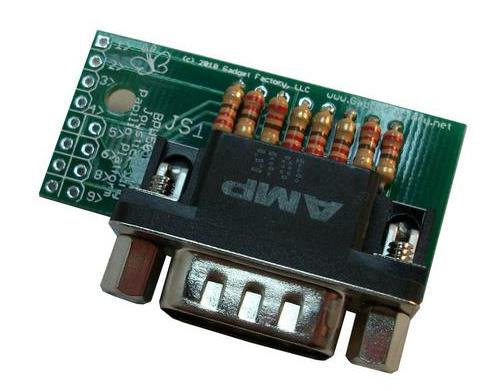

This Joystick Wing allows many joysticks such as the Atari 2600 and Commodore joysticks to be used with the Papilio One. Any Joystick that uses a 9 pin female connector should work with this Joystick Wing.

Specifications

  • Has been tested with Atari 2600 Joysticks.
  • 8 data pins are routed for easy configuration with other types of joysticks.
  • Pin 7 is connected to 5V for joysticks that require power.
  • Design is meant to support as many types of joystick as possible.

Applications

  • Menu Navigation
  • Video Games

Resources

Example Projects

Kit Includes (Requires assembly)

  • Joystick Wing PCB
  • DB9 Male Connector
  • 8 x 390 ohm Resistors
  • 12 pin Male Breakable Header
