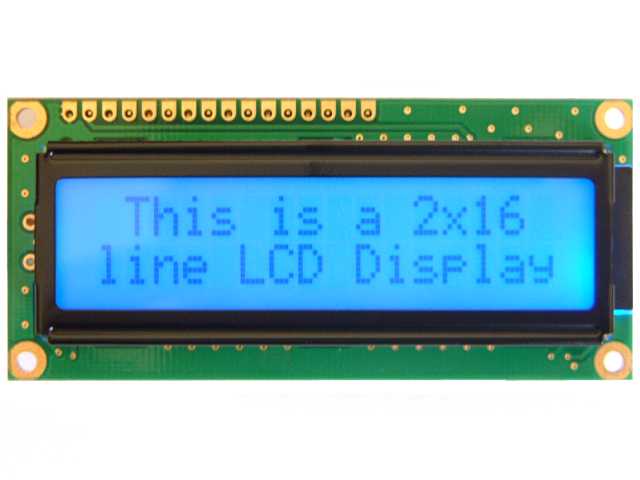

2x16 characters, STN gray, Blue LED backlight - 5v
LCD Character Module Display, 2x16 characters, STN gray, Blue LED backlight, Transflective, 6:00, Standard Temp, Module size 80mm x 36mm, English-European character set.
This LCD display uses STN technology, which is much better quality than the cheaper TN types. It has a better contrast and a wider viewing angle.
- Number of Characters: 16 characters x 2 Lines
- Character Table: English-European (RS in Datasheet)
- Module dimension: 80.0mm x 36.0mm x 13.2mm(MAX)
- area: 66.0 x 16.0 mm
- Active area: 56.2 x 11.5 mm
- Dot size: 0.55 x 0.65 mm
- Dot pitch: 0.60 x 0.70 mm
- Character size: 2.95 x 5.55 mm
- Character pitch: 3.55 x 5.95 mm
- LCD type: STN, Positive, Transflective, Grey
- Duty: 1/16
- View direction: Wide viewing angle
- Backlight Type: Blue LED
