BeagleBoard - rev C5

BeagleBoard - rev C5

Sold out
£131.88 inc VAT
£109.90 - £109.90
£109.90
£109.90 - £109.90
£109.90
ex VAT
SKU BEAGLEBOARD

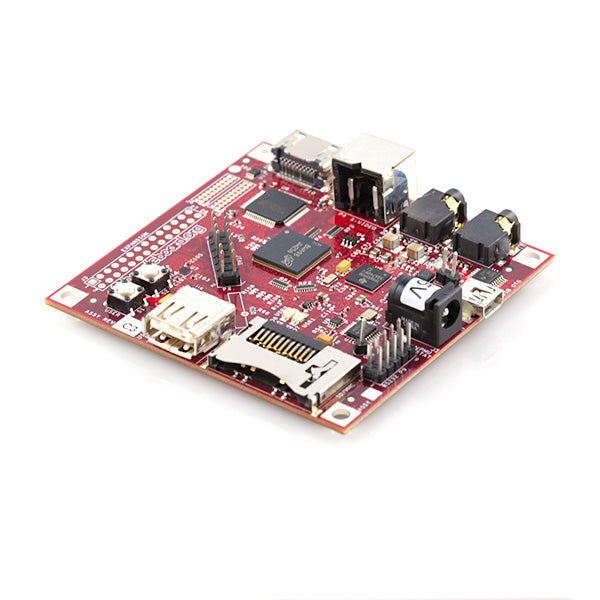

The Beagle Board is an incredibly powerful single-board computer developed by Texas Instruments, featuring their OMAP3530 system on a chip. The board is supported by a large community and is designed with open-source development in mind.

The Beagle Board measures about 3x3" and has all the functionality of a basic computer. With its numerous expansion options, the Beagle Board can be used as the backbone for a large variety of projects. The OMAP3530 includes an HD-video capable TMS320C64x+ DSP for accelerated video and audio decoding, and an OpenGL ES 2.0 capable 2D/3D GPU. Video outputs can be provided by the on-board S-video or DVI-D (HDMI connector) outputs.

The board also includes an MMC+/SD/SDIO interface, USB 2.0, 3.5mm stereo audio in/out connectors, and RS-232 and JTAG connectors.

The board can consume up to 2W of power, which can be provided via USB or an external 5V source, via the on-board barrel jack. Because of the efficient power consumption, the board requires no additional cooling.

Note: We now carry the C5 revision of this board.

Features
  • 600MHz superscalar ARM Cortex A8 processor
  • Over 1,200 Dhrystone MIPS
  • Up to 10 million polygons per second graphics output
  • HD-video capable C64x+ DSP core
  • 256MB LPDDR RAM
  • 256MB NAND Flash
  • I2C, I2S, SPI, MMC/SD capabilities
  • DVI-D and S-video video output
  • JTAG
  • SD/MMC+ socket
  • 3.5mm stereo in/out
  • USB 2.0 HS OTG
  • RS-232 serial
