Breadboard Power Supply Stick 5V-3.3V

£12.60 inc VAT
Original price £10.50 - Original price £10.50
Original price
£10.50
£10.50 - £10.50
Current price £10.50
ex VAT
SKU BBOARD-PSU

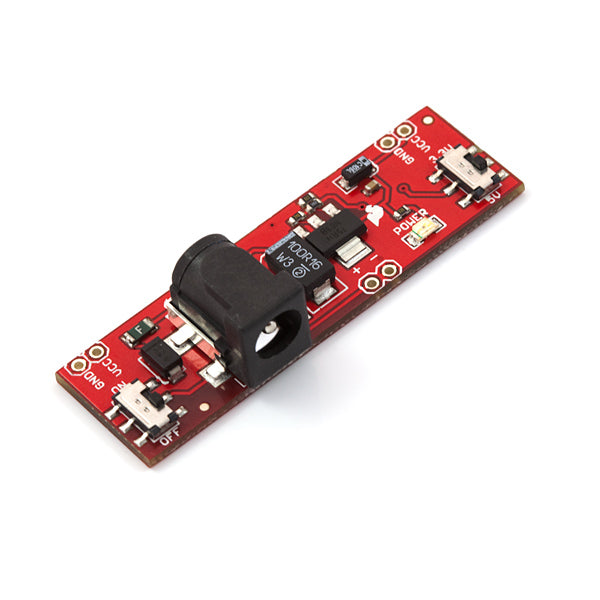

This is a very simple board that takes a 6-12V input voltage and outputs a selectable 5V or 3.3V regulated voltage. All headers are 0.1" pitch for simple insertion into a breadboard.

Input power can be supplied to either the DC barrel jack or the two pin header labeled + and -. Output power is supplied to the pins labeled GND and VCC. Board has both an On/Off switch and a voltage select switch (3.3V/5V).

The two pairs of GND and VCC pins are spaced such that when connected to our Basic Breadboard both power busses will be powered.

Features

  • 6-12V input voltage via barrel jack or 2-pin header
  • 3.3V or 5V regulated output voltage
  • ON/OFF switch
  • Output voltage select switch
  • Power status LED
  • PTC fuse protected power


Documents: Schematic

Dimensions: 2.15x0.65"
