Button Pad 2x2 - LED Compatible
£2.64
inc VAT
Original price
£2.20
-
Original price
£2.20
Original price
£2.20
£2.20
-
£2.20
Current price
£2.20
ex VAT
SKU BPAD-2X2

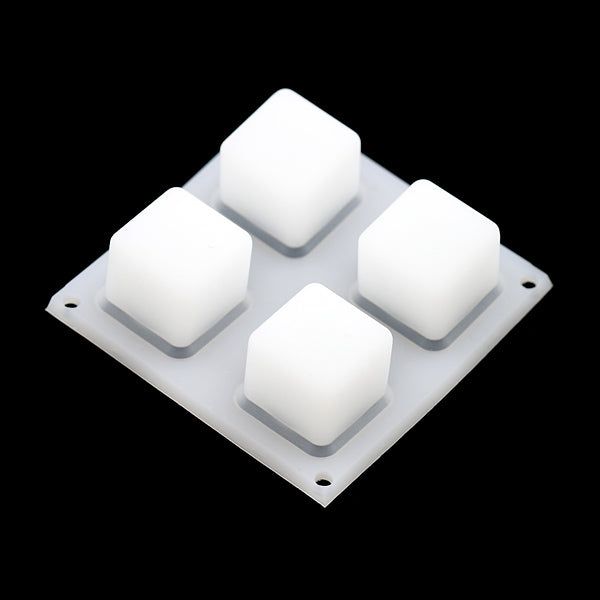

This is a translucent silicon rubber button pad with 4 buttons orignally inspired by the folks at monome.org. Each button has a hole underneath that accepts either a 3mm or 5mm standard LED. The idea is that you can create a button interface of your choice with the ability to display simple colors under each button. Mainly, we wanted to use our tri-color LEDs to create a full RGB color for each button.
Each button has a conductive circle backing so that a switch can be created with exposed PCB traces. Button force is between 190 and 210grams activation force (nice tactile feel like on your TV remote).
Documents
- Dimensional Drawing (2x2 section only)
-
SFE Eagle Library has this part!
