CAN-Bus CAN FD Breakout Board. 5v Supply and 3.3v Logic

£22.20 inc VAT
Original price £18.50 - Original price £18.50
Original price
£18.50
£18.50 - £18.50
Current price £18.50
ex VAT
SKU CANBUSFD3V-BRK

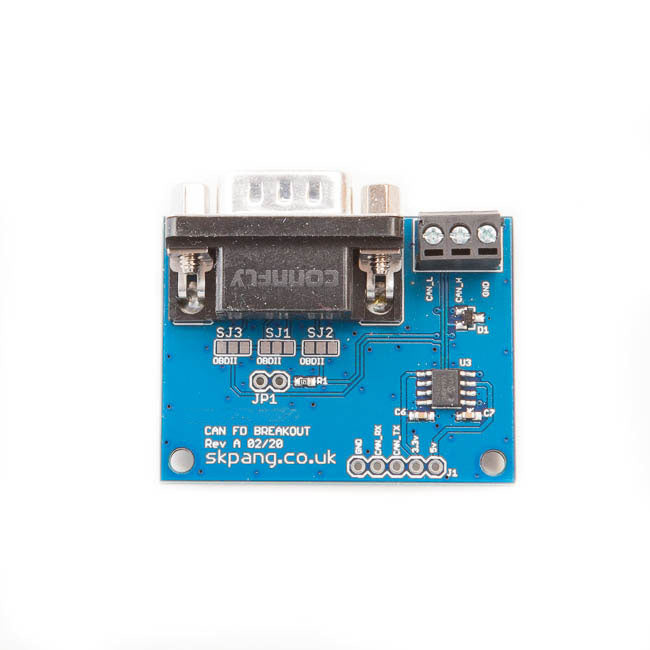

This is a CAN-Bus breakout board with Flexible Data Rate using the Microchip MCP2562FD chip. The output pins are on both screw terminal and DB9 connector. The DB9 can be configure for use with a OBDII cable or CAN Analyser pin-out via solder bridges.

Features
  • Microchip MCP2562FD CAN FD transceiver
  • 5v supply and 3.3v logic
  • Supports up to  6 Mb/s operation
  • Implements ISO-11898 and ISO-11898-5 standard physical layer requirements
  • Up to 112 nodes can be connected
  • DB9 and screw terminal connection
  • DB9 can be configure for OBDII cable or CAN Analyser pin-out
  • 120R terminating resistor via jumper
Documents
