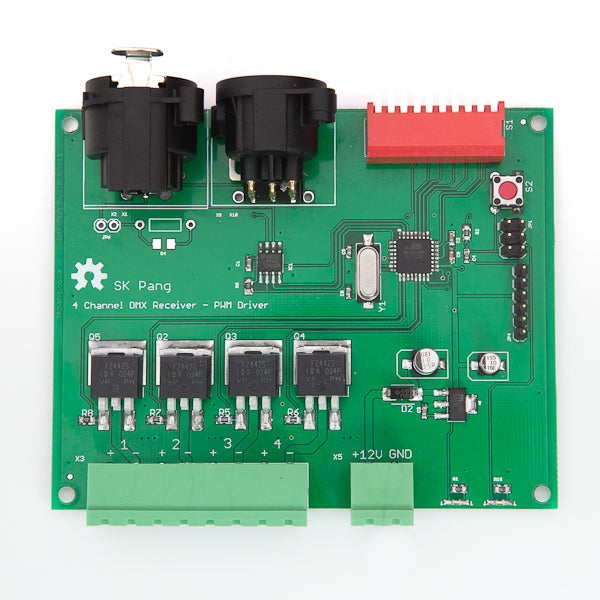

DMXduino 4 Channel PWM Driver

Sold out
£58.80 inc VAT
Original price £49.00 - Original price £49.00
Original price
£49.00 - £49.00
Current price £49.00
ex VAT
This DMXduino is an open source hardware project. Based on the Arduino and with an Atmega328 micro-controller. It decodes the DMX signal and drive 4 channel PWM. Ideal for LED light strip. DMX channel can be set via DIL switches.

The boatloader and demo sketch is already pre-programmed. New sketch can be uploaded via FTDI breakout board.

  • 4 Channel PWM output
  • Two 3pin XLR connector on board (5pin available upon request)
  • DMX channel set via DIL switches
  • Optional termination resistor
  • 4 individual LED or common anode configuration
  • Up to 3A per channel at 12V
  • Uses ultra low on-resistance MOSFET for cool operation
  • Built in bootloader, requires FTDI breakout board for re-programming
