ELM327MS OBDII Multi Protocol Interface (Serial)
This is a multi protocol interface. It combines the ELM320, ELM322 and ELM323 into one IC, also adds CAN support (ISO 15765-4) as well.

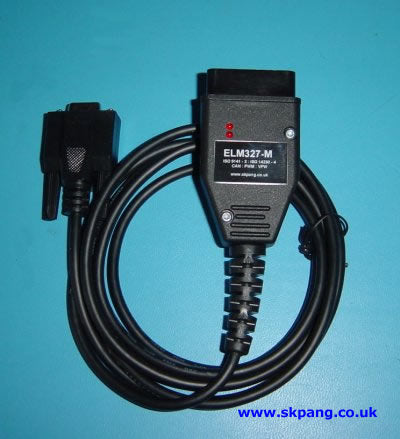

Single cable unit, no need for separate OBDII cable - box - serial cable.
Genuine ELM327 v1.4 chip imported directly from Elm Electronics
- Supports J1850 VPW and PWM, ISO 9141-2, ISO 14230-4 as well as ISO 15765-4.
- Auto protocol search
- Uses the same simple ascii command interface.
- True RS232 voltage using MAX232 IC.
- Internal EEPROM can remember the last protocol.
- Voltage input monitors your vehicle battery.
Requires PC with 9-pin serial port.
Compatible with ScanMaster-ELM software. Free demo version.
Stock Status : 2
