Four 7-Segment Daughter Baord, 4 buttons

Four 7-Segment Daughter Baord, 4 buttons

£14.40 inc VAT
£12.00 - £12.00
£12.00
£12.00 - £12.00
£12.00
ex VAT
SKU DEV7TC

Introduction

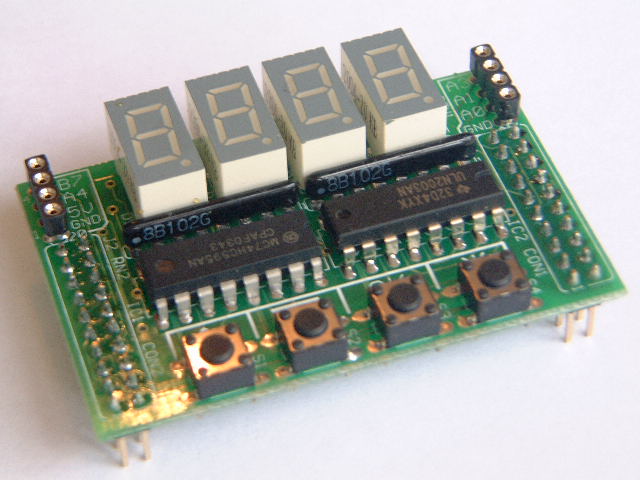

DEV7TC is a Seven Segment Display Daughter board that plugs into the Compact Daughter Board Connector of a Modtronix PIC based MicroX SBC board, like the SBC28PC-IR2, SBC28PC-IR4 or SBC44B.


Features

  • Four Seven Segment Displays using ultra bright red LEDs.
  • Four buttons for user input.
  • Two 4 pin Femal Pin headers (Tulip maschined type) with PIC pins and power signal.
  • Has two 2x10 pin, 2.54mm (standard grid) pin headers that plugs into the
  • Compact Daughter board connector of any Modtronix PIC based MicroX SBC board.


Expansion

The DEV7TC can be plugged into the Compact Daughter Board connector of a Modtronix PIC based MicroX SBC board, like the SBC28PC for example. See pictures to the right.

Examples, Documentation and Photos

The up/down counter example program below contains a driver file for the DEV7TC board that has functions for using the display and buttons on the DEV7TC. Button debouncing is done via software.



Download Product Datasheet in PDF format.

Demo Source Code

Additional photos:
Front View 1, Top View 2, Bottom view
