Humidity Sensor - HIH-4030 Breakout

£13.68 inc VAT
Original price £11.40 - Original price £11.40
Original price
£11.40
£11.40 - £11.40
Current price £11.40
ex VAT
SKU HIH-4030-BRK

sku: SEN-09569

This is a breakout board for Honeywell's HIH-4030 humidity sensor. The HIH-4030 measures relative humidity (%RH) and delivers it as an analog output voltage. You can connect the output of the sensor directly to an ADC on a microcontroller; and, thanks to the sensor's near linear voltage output, the data is very easy to process.

Voltage applied to the supply pins should be within 4-5.8VDC, and optimally at 5V. The sensor will typically only consume about 200uA.

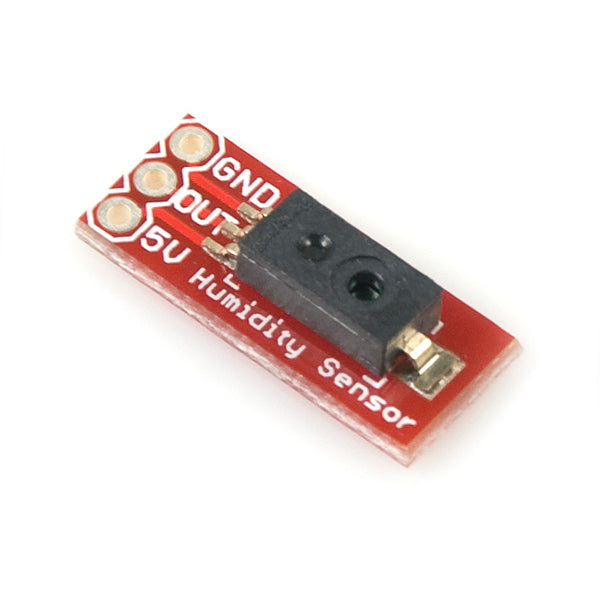

This product comes as shown in the picture, with the HIH-4030 soldered onto the breakout board. The pins of the 3-pin header are spaced by 0.1".

Features

  • Near linear, analog output
  • 4-5.8VDC voltage supply
  • All pins broken out to a 0.1" pitch header
  • Laser trimmed interchangeability
  • Low power design, typical current draw of only 200uA
  • Enhanced accuracy
  • Fast response time
  • Stable, low drift performance


Dimensions: 0.75 x 0.30 " (19.05 x 7.62 mm)
