Isolated LIN-Bus Breakout Board

£34.80 inc VAT
Original price £29.00 - Original price £29.00
Original price
£29.00
£29.00 - £29.00
Current price £29.00
ex VAT
SKU ISO-LINBUS-BRK

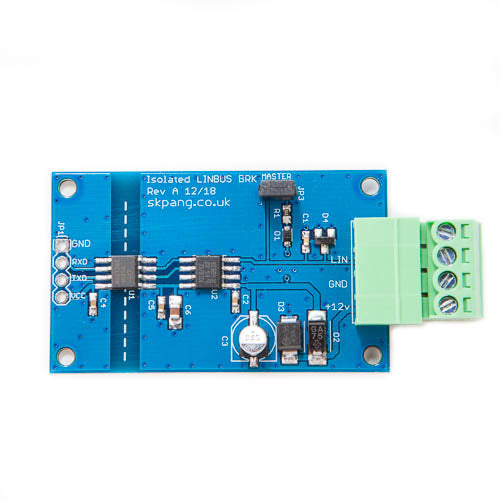

This is an isolated LIN-Bus breakout board using the TJA1028 and MAX12931 ICs.

Features
  • LIN 2.0/2.1/2.2 compliant
  • SAE J2602 compliant
  • Internal LIN slave termination resistor
  • Master option via jumper setting
  • Robust ESD performance; 8 kV according to IEC61000-4-2 for pins LIN and VBAT
  • LIN pin short-circuit proof to battery and ground
  • K-line compatible
  • Galvanic Isolation of Digital Signals
    • Withstands 3kVRMS for 60s
    • Continuously Withstands 445VRMS (VIOWM)
    • Withstands ±10kV Surge Between GNDA and GNDB with 1.2/50μs Waveform
    • High CMTI (50kV/μs, typ)
