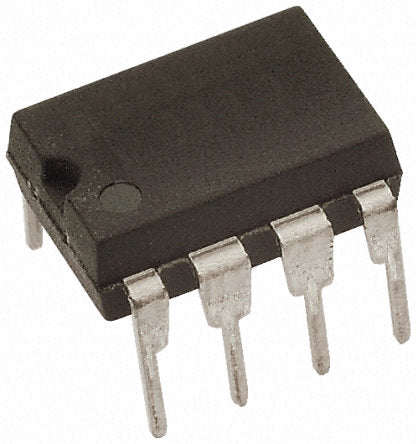

MCP3002 Dual Channel 10 Bit ADC Converter with SPI Interface

£2.28 inc VAT
Original price £1.90 - Original price £1.90
Original price
£1.90
£1.90 - £1.90
Current price £1.90
ex VAT
SKU MCP3002
MCP3002 10-bit Analog-to-Digital Converter (ADC) combines high performance and low power consumption in a small package, making it ideal for embedded control applications. The MCP3002 features a successive approximation register (SAR) architecture and an industry-standard SPI™ serial interface, allowing 10-bit ADC capability to be added to any PICmicro® microcontroller. The MCP3002 features 200k samples/second, 2 input channels, low power consumption (5nA typical standby, 520µA typical active).
Applications for the MCP3002 include data acquisition, instrumentation and measurement, multi-channel data loggers, industrial PCs, motor control, robotics, industrial automation, smart sensors, portable instrumentation and home medical appliances.

Features
  • Max Sample Rate (ksamples/sec) : 200
  •  Max. INL ± (LSB) : 1
  •  Max. Supply Current (µA) : 550
  •  Input Type : Single-ended
  •  # of Input Channels : 2
  •  Resolution (bits) : 10
  •  Interface : SPI
  •  Temp Range (°C) : -40 to +85°C
  •  Input Voltage Range (V) : 2.7 to 5.5
Documents
