MCP9808 High Accuracy I2C Temperature Sensor Breakout Board

£5.40 inc VAT
Original price £4.50 - Original price £4.50
Original price
£4.50
£4.50 - £4.50
Current price £4.50
ex VAT
SKU MCP9808-BRK

#1782


This I2C digital temperature sensor is one of the more accurate/precise we've ever seen, with a typical accuracy of ±0.25°C over the sensor's -40°C to +125°C range and precision of +0.0625°C. They work great with any microcontroller using standard i2c. There are 3 address pins so you can connect up to 8 to a single I2C bus without address collisions. Best of all, a wide voltage range makes it usable with 2.7V to 5.5V logic!

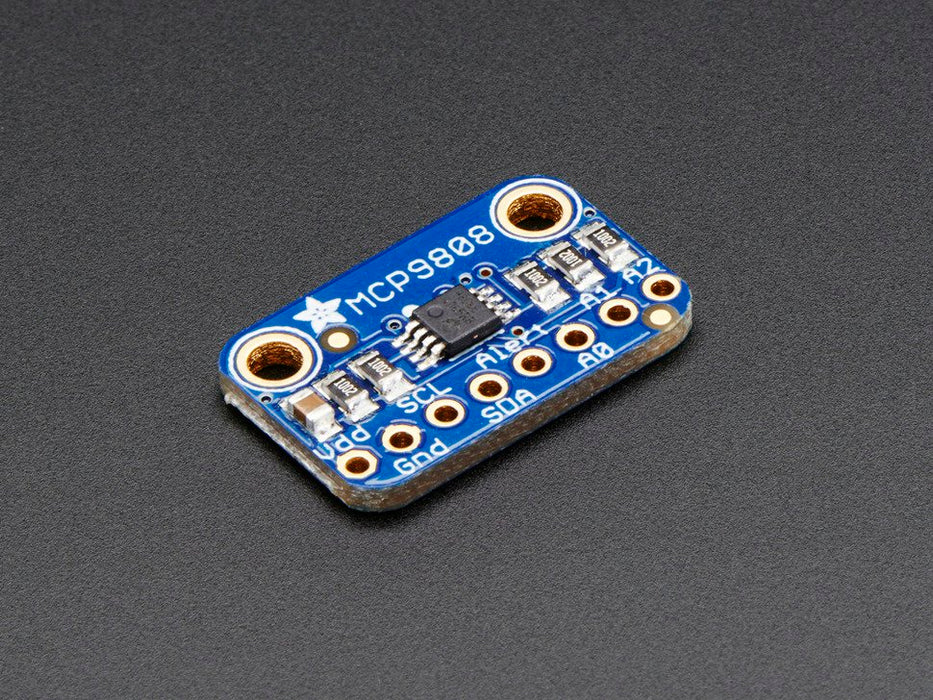

Unlike the DS18B20, this sensor does not come in through-hole package so we placed this small sensor on a breakout board PCB for easy use. The PCB includes mounting holes, and pull down resistors for the 3 address pins. We even wrote a lovely little tutorial and library that will work with Arduino or CircuitPython. You'll be up and running in 15 minutes or less.

Features
  • Sensing Temperature: -40ºC ~ 125ºC
  • Accuracy: 0.25ºC typical
  • Voltage - Supply: 2.7V ~ 5.5V
  • Operating Temperature: -40ºC ~ 125ºC
  • Uses any I2C address from 0x18 thru 0x1F
  • Dimensions: 21mm x 13mm x 2mm
  • Weight: 0.9g
