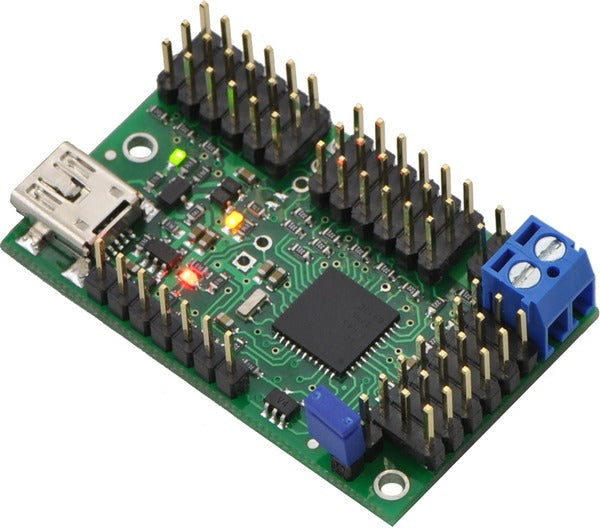

Mini Maestro 18-Channel USB Servo Controller (Assembled)

Mini Maestro 18-Channel USB Servo Controller (Assembled)

Sold out
£32.28 inc VAT
£26.90 - £26.90
£26.90
£26.90 - £26.90
£26.90
ex VAT
SKU USBSERVO-18

Pololu item #: 1354

The 18-channel Mini Maestro 18 raises the performance bar for serial servo controllers with features such as a native USB interface and internal scripting control. Whether you want the best servo control available (0.25us resolution with built-in speed and acceleration control and pulse rates up to 333 Hz) or a general I/O controller (e.g. to interface with a sensor or ESC via your USB port), this compact, versatile device will deliver. This fully-assembled version ships with header pins installed.

Specifications

  • Channels:  18
  • Baud:  300 - 200000 bps
  • Minimum operating voltage:  5 V
  • Maximum operating voltage:  16 V
  • Supply current:  40 mA2
  • Dimensions : 1.10" x 1.80"
  • Weight:  10.0 g
