PiCAN FD Board with 10Base-T1S for Raspberry Pi

PiCAN FD Board with 10Base-T1S for Raspberry Pi

£114.00 inc VAT
£95.00 - £116.50
£95.00
£95.00 - £116.50
£95.00
ex VAT
SKU RSP-PICANFD-T1S

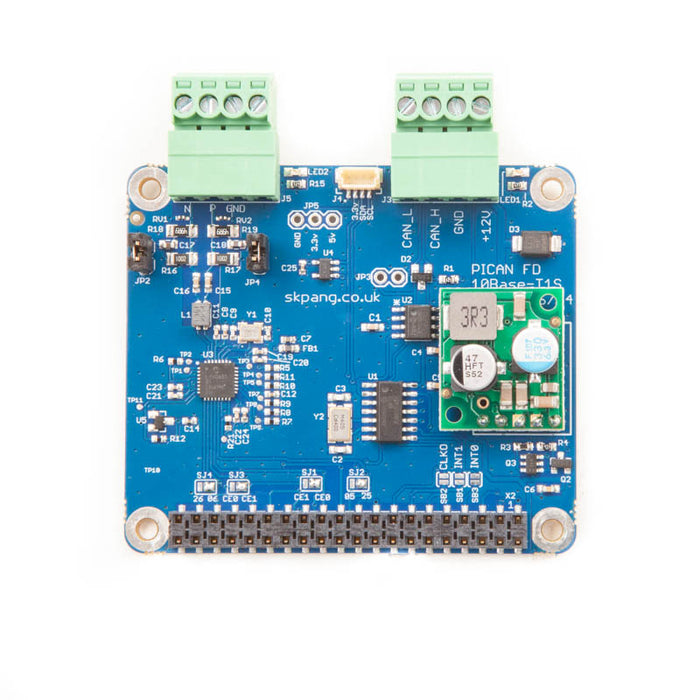

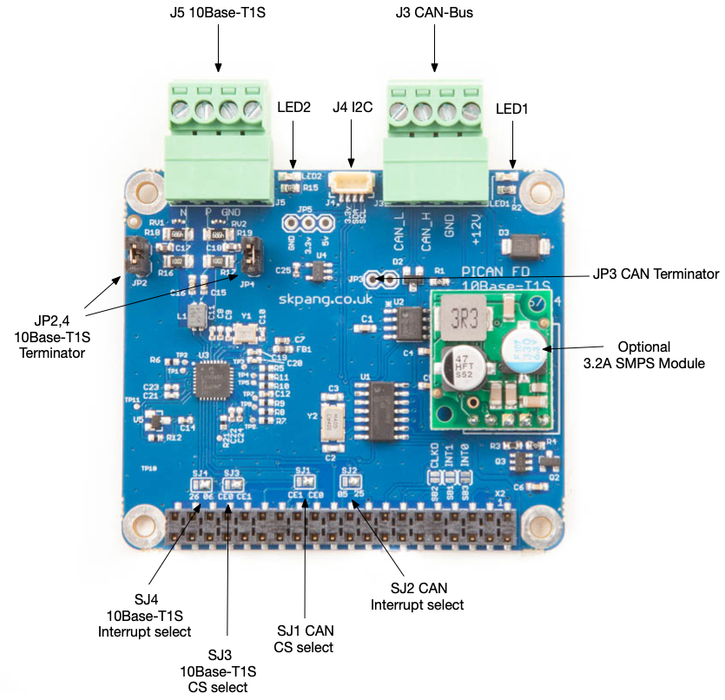

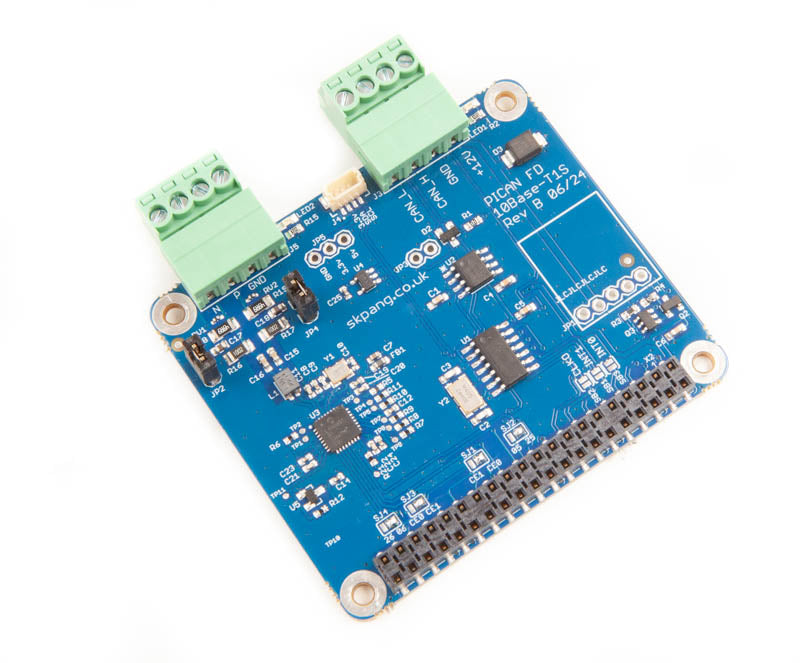

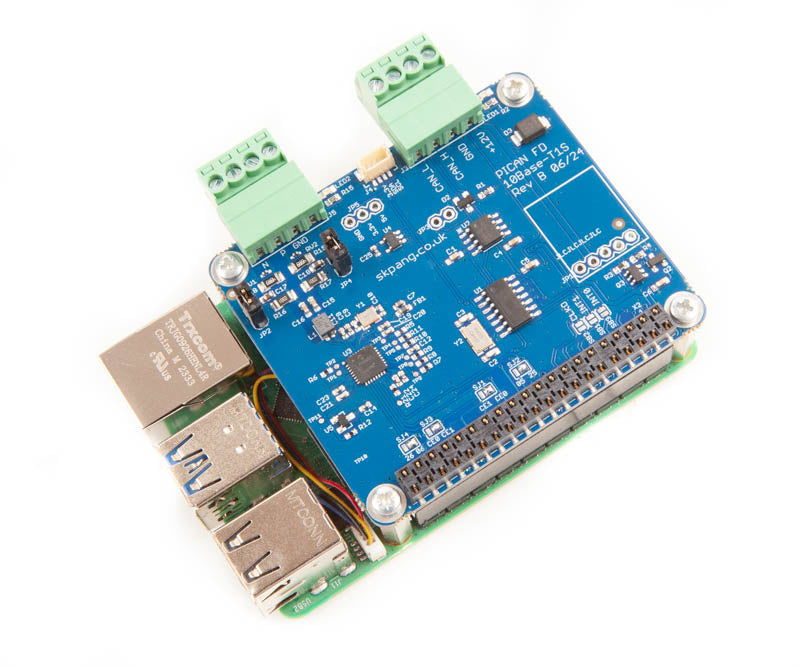

This board has a 10Base-T1S Single Pair Ethernet (SPE) port and a CAN FD port.
The 10Base-T1S is provided by the Microchip LAN8651 chip. The CAN FD is provided by the Microchip MCP2518FD CAN controller. Connection is via 4 way plugable terminal.

The improved CAN FD extends the length of the data section to up to 64 bytes per frame and a data rate of up to 8 Mbps.

CAN FD Features
  • Microchip MCP2518FD CAN Controller
  • Arbitration Bit Rate upto 1Mbps
  • Data Bit Rate upto 8Mbps
  • CAN FD Controller modes
    • Mixed CAN 2.0B and CANFD mode
    • CAN 2.0B mode
  • Conforms to ISO 11898-1:2015
  • High speed SPI Interface
  • 120Ω terminator ready
  • LED indicator
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25
  • I2C connector

10Base-T1S Features

  • Microchip LAN8651 MAC/PHY controller
  • PHY designed to IEEE Std. 802.3cgTM-2019
  • 10 Mbit/s over a single balanced pair
    • Half-duplex multidrop mixing segments up
      to at least 25m with up to at least 8 PHYs
    • Half-duplex point-to-point link segments up
      to at least 15m
  • Physical Layer Collision Avoidance (PLCA)
    • Burst mode for transmission of multiple packets • for latency-sensitive applications
    • Minimize latency for time-sensitive applications by assigning multiple PLCA IDs per node
  • Carrier Sense Multiple Access / Collision Detection (CSMA/CD) media access control
  • Application Controlled Media Access (ACMA) for implementation of collision-free Time-Division Multiple Access (TDMA) methods
  • Industry standard Serial Peripheral Interface (SPI), designed to the OPEN Alliance 10BASE‐T1x MAC‐PHY Serial Interface specification, V1.1
  • Unique 48-bit MAC address provided by 24AA02E48 IC
