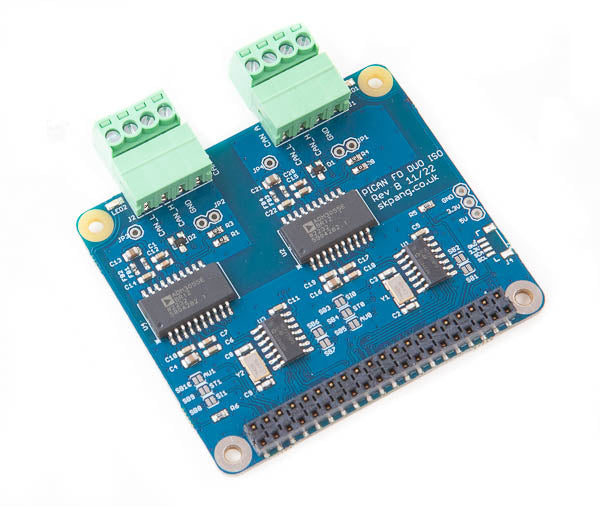

PiCAN FD Duo Isolated for Raspberry Pi

This PiCAN FD Duo Isolated board provide two channel CAN-Bus FD capability for the Raspberry Pi. It uses the Microchip MCP2518FD CAN controller with Analog Devices ADM3055 Isolated CAN transceiver. Connection are made via 4 way plug-in screw terminal. The two channel are independently isolated.

The improved CAN FD extends the length of the data section to up to 64 bytes per frame and a data rate of up to 8 Mbps.

• Microchip MCP2518FD CAN Controller
• Analog Devices ADM3055 Isolated CAN transceiver
• Reinforced galvanic isolation
• Arbitration Bit Rate upto 1Mbps
• Data Bit Rate upto 8Mbps
• CAN FD Controller modes
• Mixed CAN 2.0B and CANFD mode
• CAN 2.0B mode
• Conforms to ISO 11898-1:2015
• High speed SPI Interface
• CAN connection via 4 way terminal
• 120Ω terminator ready
• LED indicator

• Four fixing holes, comply with Pi Hat standard
• SocketCAN driver, appears as can0 and can1 to application
• Interrupt RX on GPIO25 and 05

• MCP2518FD CAN Controller data sheet
• Schematic

• User guide
• Sample software
