PiCAN FD with GPS/GNSS ublox NEO-M8T Timing Module for Raspberry Pi

£181.08 inc VAT
Original price £150.90 - Original price £172.40
Original price
£150.90
£150.90 - £172.40
Current price £150.90
ex VAT
SKU PICANFD-NEO-M8T

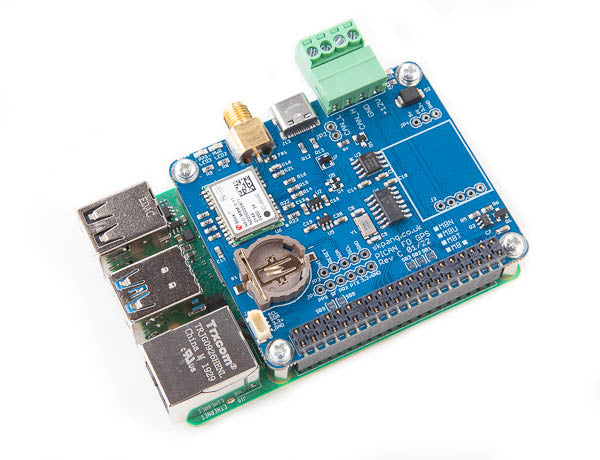

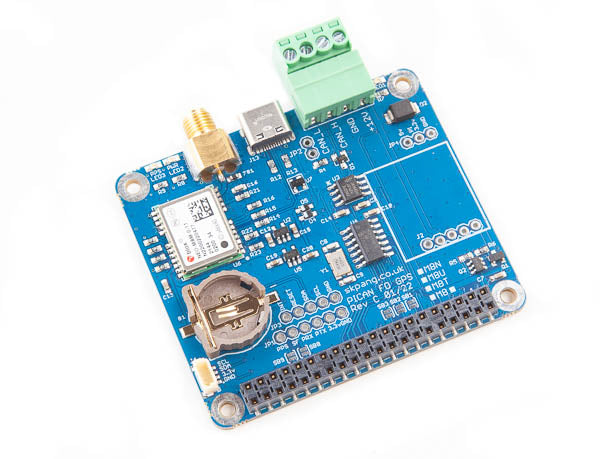

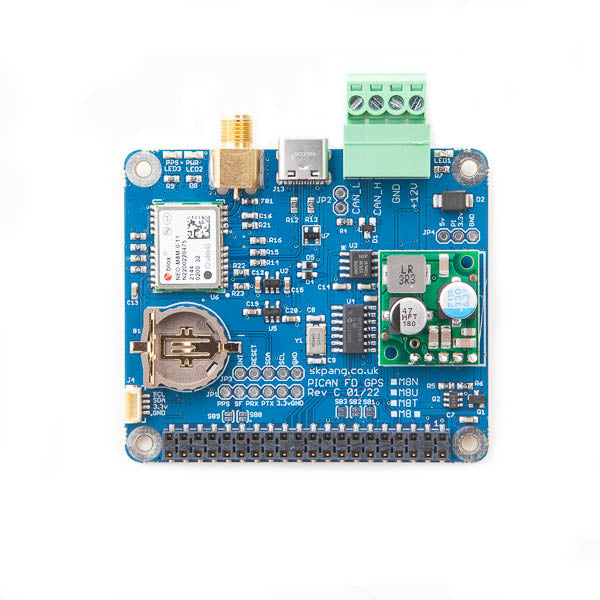

This PiCAN FD board with ublox NEO-M8T GPS/GNSS receiver. The NEO-M8T concurrent GNSS modules deliver high integrity, precision timing in demanding applications world-wide. Support for BeiDou, GLONASS and Galileo constellations enables compliance with national requirements. Enhanced sensitivity and concurrent constellation reception extend coverage and integrity to challenging signal environments. Survey-in and fixed-position navigation reduce timing jitter, even at low signal levels, and enable synchronization to be maintained with as few as one single satellite in view. Support for low duty cycle operation reduces power consumption for battery-powered applications.
u-blox timing products include timing integrity measures with Receiver Autonomous Integrity Monitoring (RAIM) and continuous phase uncertainty estimation. They feature high dynamic range radios with both analog and digital interference mitigation, supporting applications in wireless communications equipment.

Antenna connection is via a SMA connector.

Classic CAN and CAN FD is provided by the Microchip MCP2518FD IC.

Easy to install SocketCAN driver. Programming can be done in C or Python.

CAN FD Features
  • Microchip MCP2518FD CAN Controller
  • Arbitration Bit Rate u pto 1Mbps
  • Data Bit Rate upto 8Mbps
  • CAN FD Controller modes
    • Mixed CAN 2.0B and CANFD mode
    • CAN 2.0B mode
  • High speed SPI Interface (10 MHz)
  • 120Ω terminator ready
  • LED indicator (GPIO04)
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25
  • Fix status LED

NEO-M8T Features

  • 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
  • Position accuracy 2.5 m CEP (Autonomous)
  • TCXO Oscillator
  • Built-In RTC crystal
  • USB-C, I2C and UART communication with RAW data out
  • SMA antenna connection
  • u-center software compatible. Requires Windows PC via USB-C
  • Time Pulse LED
