PiCAN FD with GPS/GNSS ublox NEO-M8M for Raspberry Pi

£97.14 inc VAT
Original price £80.95 - Original price £120.95
Original price
£80.95
£80.95 - £120.95
Current price £80.95
ex VAT
SKU PICANFD-NEO-M8M

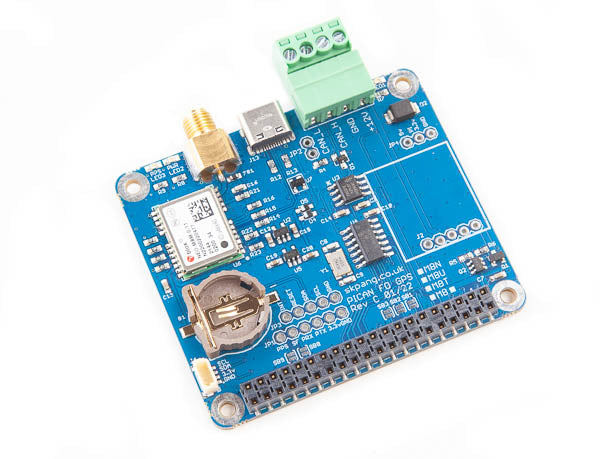

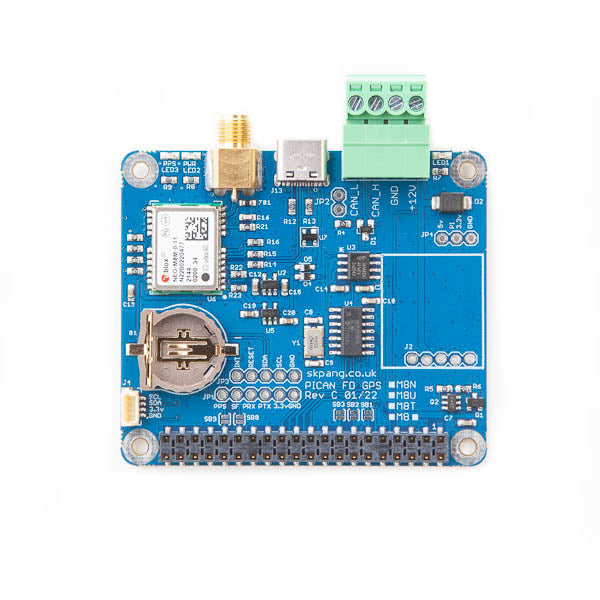

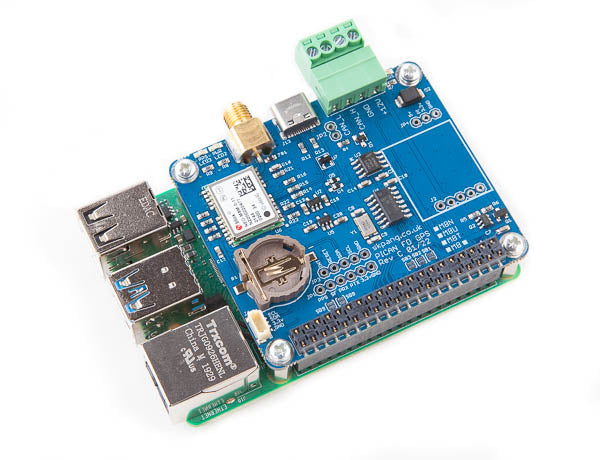

This PiCAN FD board with ublox NEO-M8M GPS/GNSS receiver. The NEO-M8 modules utilize concurrent reception of up to three GNSS systems (GPS/Galileo togetherwith BeiDou or GLONASS), recognize multiple constellations simultaneously and provide outstandingpositioning accuracy in scenarios where urban canyon or weak signals are involved. Antenna connection is via a SMA connector.
Classic CAN and CAN FD is provided by the Microchip MCP2518FD IC.

Easy to install SocketCAN driver. Programming can be done in C or Python.

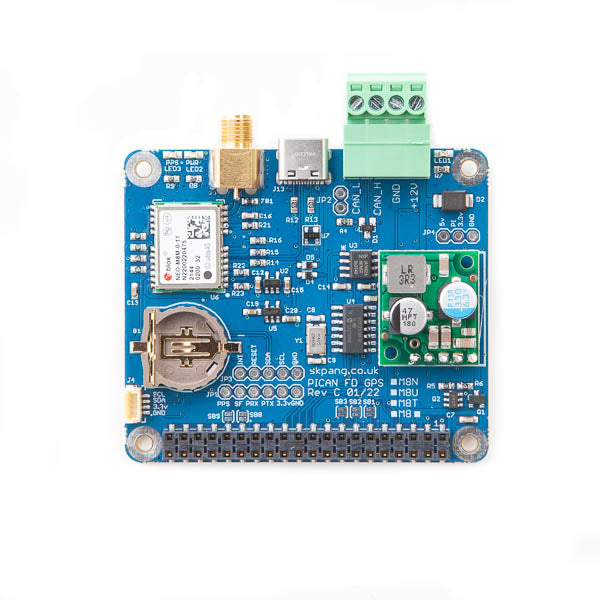

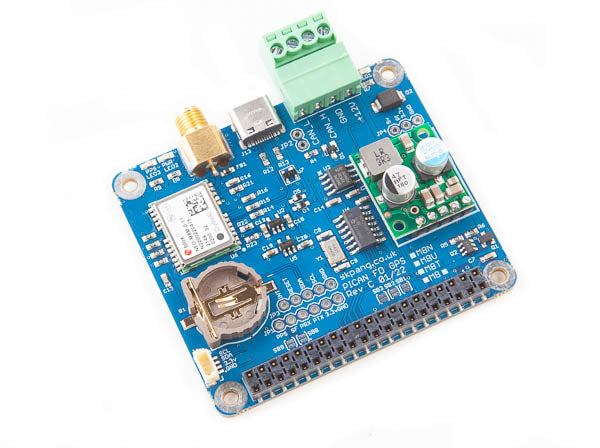

Optional 3A SMPS module which can power the PiCAN FD GPS/GNSS board and Raspberry Pi from 7 to 24v external supply.

CAN FD Features
  • Microchip MCP2518FD CAN Controller
  • Arbitration Bit Rate u pto 1Mbps
  • Data Bit Rate upto 8Mbps
  • CAN FD Controller modes
    • Mixed CAN 2.0B and CANFD mode
    • CAN 2.0B mode
  • High speed SPI Interface (10 MHz)
  • 120Ω terminator ready
  • LED indicator (GPIO04)
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25
  • Fix status LED

NEO-M8M Features

  • 72-channel u-blox M8 engine GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C
  • USB-C, I2C and UART communication
  • SMA antenna connection
  • u-center software compatible. Requires Windows PC via USB-C
  • Time Pulse LED
