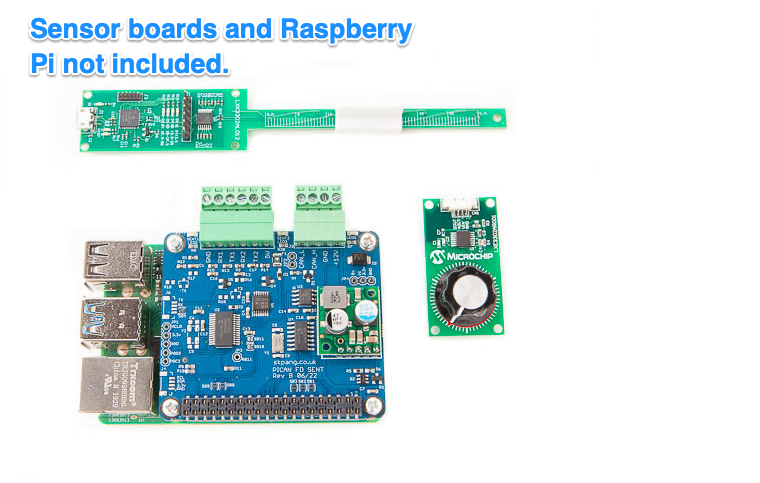

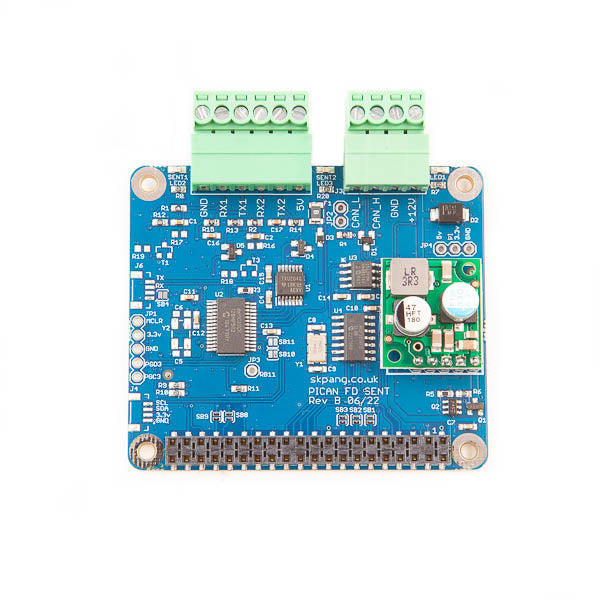

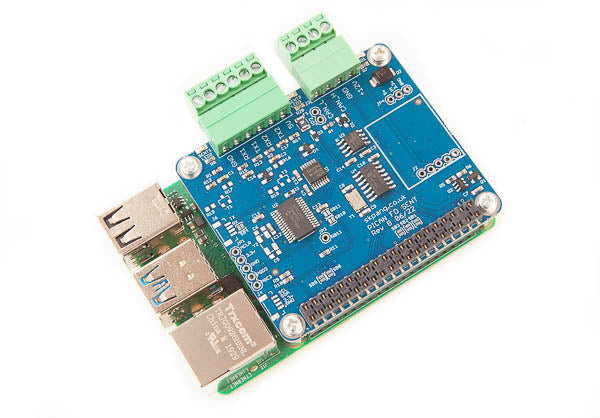

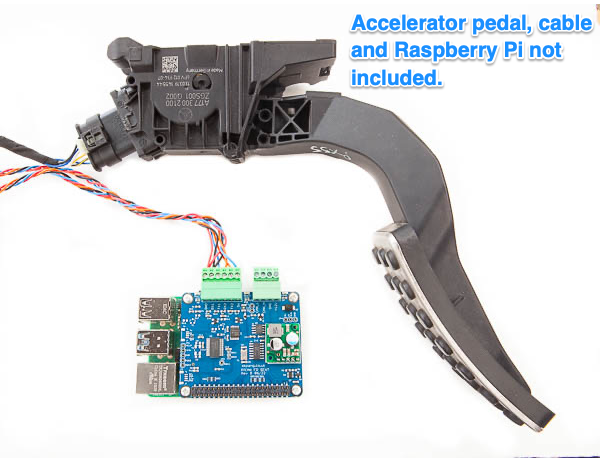

PiCAN FD with SAE J2716 SENT for Raspberry Pi

£80.40 inc VAT
Original price £67.00 - Original price £88.50
Original price
£67.00
£67.00 - £88.50
Current price £67.00
ex VAT
SKU RSP-PICANFD-SENT


This PiCAN FD board with SAE J2716 SENT. Classic CAN and CAN FD is provided by the Microchip MCP2518FD IC.

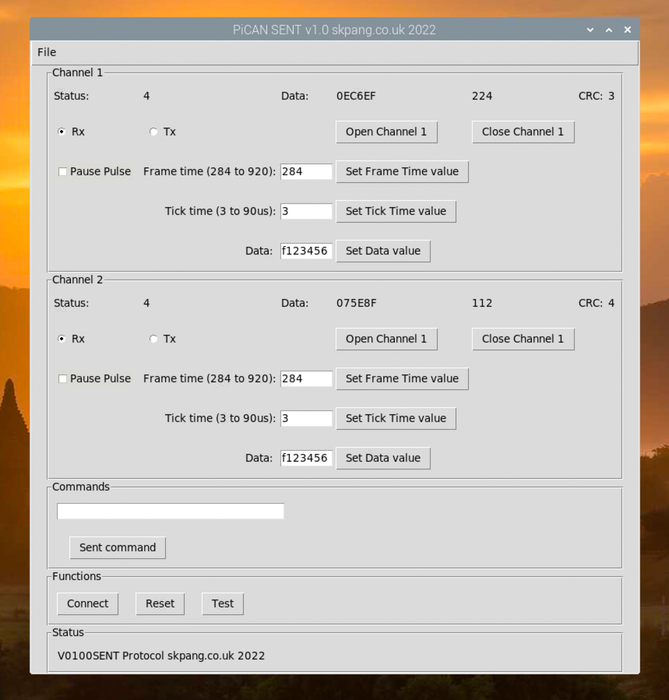

SAE J2716 SENT is provided by a dsPIC33 micro-controller. Communication to the Pi is over UART on ttyS0 using ASCII text commands. Example SENT GUI app is available written in Python3 and tkinter.
The firmware is updatable using the Microchip UnifiedHost java app. This requires the Raspberry Pi running in GUI mode.
Easy to install SocketCAN driver. Programming can be done in Python.
Optional 3A SMPS module which can power the PiCAN FD SENT board and Raspberry Pi from 7 to 24v external supply.

CAN FD Features
  • Microchip MCP2518FD CAN Controller
  • Arbitration Bit Rate upto 1Mbps
  • Data Bit Rate upto 8Mbps
  • CAN FD Controller modes
    • Mixed CAN 2.0B and CANFD mode
    • CAN 2.0B mode
  • High speed SPI Interface (10 MHz)
  • 120Ω terminator ready
  • LED indicator (GPIO04)
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25

SAE J2716 SENT Features

  • Two independent SAE J2716 SENT channels
  • Each channel can be configured for Tx or Rx
  • Configurable Tick Time and Frame Time
  • Status LED for each channel
  • 5v DC output to power small sensor
  • Powered by Microchip dsPIC33 micro-controller with updatable firmware
  • Communicate to the Pi via ASCII text commands on ttyS0
  • Python3 demo GUI app on Raspberry Pi
