PiCAN2 CAN-Bus Board for Raspberry Pi 2-3

£32.28 inc VAT
Original price £26.90 - Original price £28.10
Original price
£26.90
£26.90 - £28.10
Current price £26.90
ex VAT
SKU RSP-PICAN2

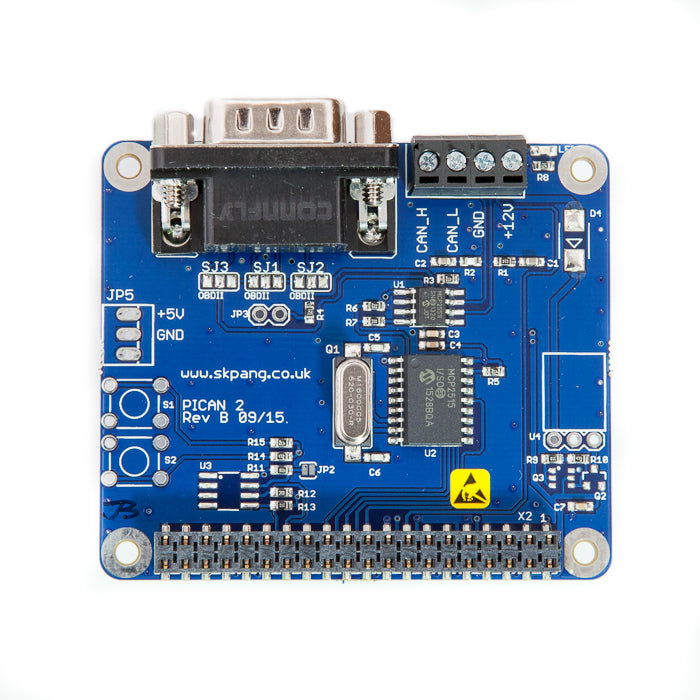

This PiCAN2 board provide CAN-Bus capability for the Raspberry Pi. It uses the Microchip MCP2515 CAN controller with MCP2551 CAN transceiver. Connection are made via DB9 or 3 way screw terminal.

Easy to install SocketCAN driver. Programming can be done in C or Python.
Please be aware there are counterfeit PiCAN2 boards in circulation. Buy only from authorised distributor listed below.

Features
  • CAN v2.0B at 1 Mb/s
  • High speed SPI Interface (10 MHz)
  • Standard and extended data and remote frames
  • CAN connection via standard 9-way sub-D connector or screw terminal
  • Compatible with OBDII cable
  • Solder bridge to set different configuration for DB9 connector
  • 120Ω terminator ready
  • Serial LCD ready
  • LED indicator
  • Foot print for two mini push buttons
  • Four fixing holes, comply with Pi Hat standard
  • SocketCAN driver, appears as can0 to application
  • Interrupt RX on GPIO25
  • Optional fixing screws - select at bottom of this webpage
