PiTFT Mini Kit - 320x240 2.8" TFT+Touchscreen for Raspberry Pi
Sold out
£31.80
inc VAT
Original price
£26.50
-
Original price
£26.50
Original price
£26.50
£26.50
-
£26.50
Current price
£26.50
ex VAT
SKU RSP-TFTMINI

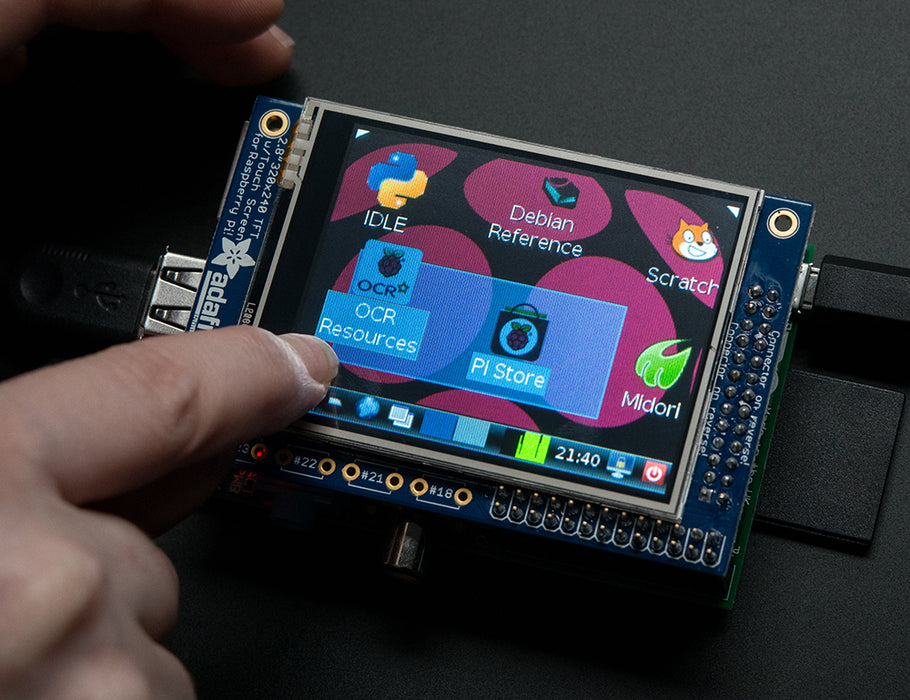

Is this not the cutest little display for the Raspberry Pi? It features a 2.8" display with 320x240 16-bit color pixels and a resistive touch overlay. The plate uses the high speed SPI interface on the Pi and can use the mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in on top!
Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. All other GPIO are unused. Since we had a tiny bit of space, there's 4 spots for optional slim tactile switches wired to four GPIOs, that you can use if you want to make a basic user interface.For example, you can use one as a power on/off button. See below for the link to get the optional tact switches, they're not included.
This version comes as a mini-kit, with a 2x13 extra-tall female header (to connect the plate to the Pi) and a 2x13 male header that can be used to connect an IDC cable or cobbler from the side. The photos above also show the optional installed slim tactile buttons. The tactile buttons are not included, but you can pick up a pack of 20 here. Some basic soldering is required to install the headers. You can also pick up an extra-long Pi stacking header if you want to install that instead of the 2x13 female header installed.
Documents
This product is supplied as a kit. Includes the header but not the switches.
The header need to be soldered on by the user.
Not suitable for complete beginner.
