Saleae USB Logic16 Analyzer

Sold out
£238.80 inc VAT
Original price £199.00 - Original price £199.00
Original price
£199.00 - £199.00
Current price £199.00
ex VAT
This is a powerful 16 channel logic analyzer in a very small anodized aluminum package from Saleae Logic. We absolutely love the simplistic, sleek design with light-weight software and a high-quality finish. Who needs 50+ connections when you're troubleshooting I2C? With USB connectivity, you can analyze up to 8 digital waveforms and timing information on your I2C, SPI, serial, and digital IO lines with ease. Great for those reverse engineering projects as well. Works with signals 5V or lower!

Includes everything you need in a compact carrying case. Test leads are disconnectable from the Logic unit. This makes it easy to remove the expensive portion of Logic from a board when you've got lots of hooks in place.

  • Geometry and Weight
    • Length & Width: 3.12 inch (79.2mm)
    • Thickness: .39 in (9.8mm)
    • Volume: 3.8 in3 (62.2 cm3)
    • Weight: 2.6 oz (73.7 gm)
  • Input Voltages and Thresholds
    • Input voltage range: -0.9V to 6V
    • Works with 1.8V, 2.5V, 3.3V, and 5V systems
    • Threshold Setting 1 (for 1.8V to 3.6V)
    • Input Low Voltage: <= .7V
    • Input High Voltage: >= 1.4V
    • Threshold Setting 2 (for 5V)
    • Input Low Voltage: <= 1.4V
    • Input High Voltage: >= 3.6V
    • Over-voltage protection to +/- 50V. Not meant for continuous operation outside -0.9V to 6V.
    • ESD protected per CE requirements
  • Input Impedance
    • 180Kohm || 7pF (typical, approximate)
  • Maximum Input Bandwidth
    • 25MHz square wave
  • Maximum Sample Rates
    • 100MHz when using 2 channels, 50MHz when using 4 channels, 25MHz when using 8 channels, and 12.5MHz when using 16 channels. Note that achieving the highest sample rates requires low USB latency; this may not be achievable on all computers. Performance may improve with the removal of other USB devices, using a different USB host controller, or increasing the software's process priority.
  • System Requirements
    • Windows XP (32-bit)
    • Windows Vista (32-bit or 64-bit)
    • Windows 7 (32-bit or 64-bit)
    • Mac OS X 10.4 Tiger or higher
    • Linux: recent Ubuntu, Fedora, or openSUSE. Other distributions are likely to work but not specifically supported.

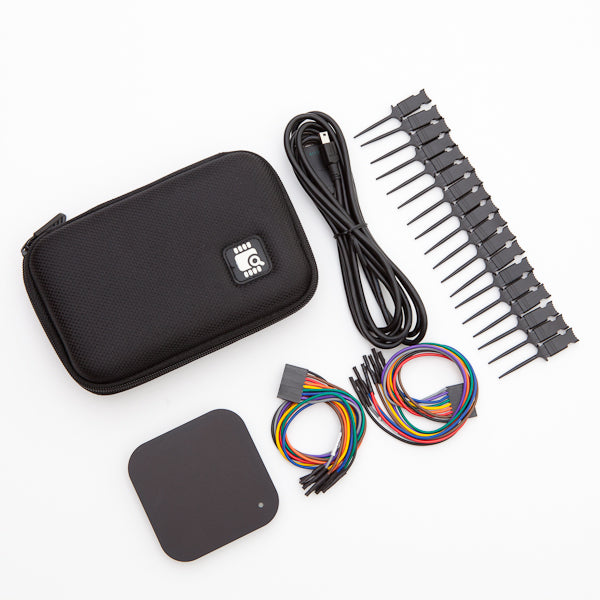

What's in the Box
  • Logic16 (fully tested)
  • x2 1x9 Ultra-Flexible Test Lead Set
  • x18 Micro Hook Clips
  • USB Cable (2M length, A to mini-B)
  • Custom Carrying Case
  • Software not included — download here
