SparkFun MicroMod Teensy Processor

£25.08 inc VAT
Original price £20.90 - Original price £20.90
Original price
£20.90
£20.90 - £20.90
Current price £20.90
ex VAT
SKU T4MMOD

 DEV-16402

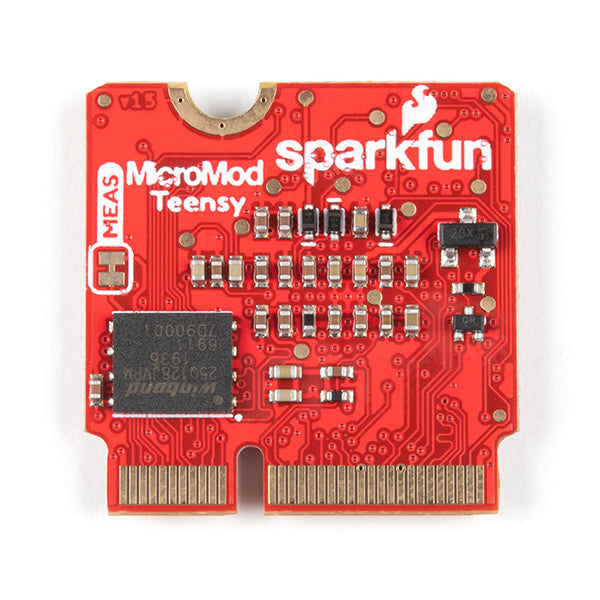

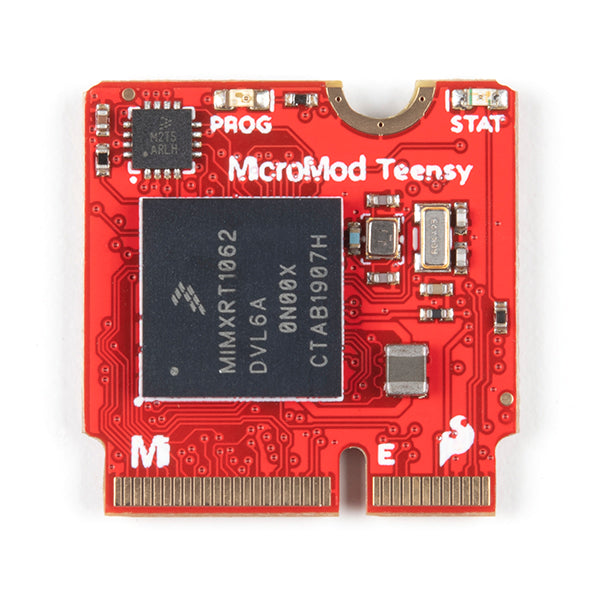

The SparkFun MicroMod Teensy Processor leverages the awesome computing power of the NXP iMXRT1062 chip and pairs it with the M.2 MicroMod connector to allow you to plug it into your choice of compatible MicroMod Carrier Board. With the M.2 MicroMod connector, connecting your Teensy Processor is a breeze. Simply match up the key on your processor's beveled edge connector to the key on the M.2 connector and secure it with a screw (included with all Carrier Boards). Adding a Teensy to your desired project has never been easier!

The Teensy Processor Board boasts some impressive computing power with an ARM Cortex-M7 processor operating at clock speeds up to 600MHz, 16MB Flash Memory and 1024K RAM Memory. On top of all that processing power, the board features seven serial UART ports, four I2C buses, two SPI ports, CAN-Bus, 12 GPIO, dedicated digital, analog, and PWM pins, USB Host and Device capability up to 480Mbit/s, digital audio and since many of the pins on the iMXRT1062 support multiple signal types you can customize it even further depending on your project's needs.

Teensy is a registered trademark of PJRC. The MicroMod Teensy is a collaboration between PJRC and SparkFun.

Features

  • USB Device up to 480Mbit/sec: Capable of enumerating as a USB keyboard, mouse, joystick, MIDI, audio, and more
  • USB Host up to 480Mbit/sec: Capable of interfacing to USB flash drives, mice, keyboards, and more
  • 7x Serial Ports
  • 2x SPI
  • 4x I2C Bus
  • 1x CAN-Bus
  • 1x I2S Digital Audio
  • 1x SDIO for SD
  • 2x Dedicated Analog Pins (Up to 14 available for use)
  • 2x Dedicated PWM Pins (Up to 22 available for use)

Documents

MicroMod Teensy Processor Documentation:

MicroMod Documentation:

Teensy Documentation:
