Teensy 4.0 OBDII CAN-Bus ECU Simulator with Enclosure
£312.00
inc VAT
Original price
£260.00
-
Original price
£260.00
Original price
£260.00
£260.00
-
£260.00
Current price
£260.00
ex VAT
SKU TEENSY4.0-OBDII-SIM-EN
This is a CAN-Bus OBDII ECU simulator using the Teensy 4.0 module (included). Useful for testing OBDII interface and writing diagnostic software. ECU PIDs parameters adjustable via potentiometers.
This board requires a 12v supply. A 12v adapter is included with UK, US, EU, AU plug.
Hardware Features
- Teensy 4.0 module (installed)
- Teensy pre-programmed with OBDII ECU simulator firmware
- 500kb/s CAN speed
- Open source firmware

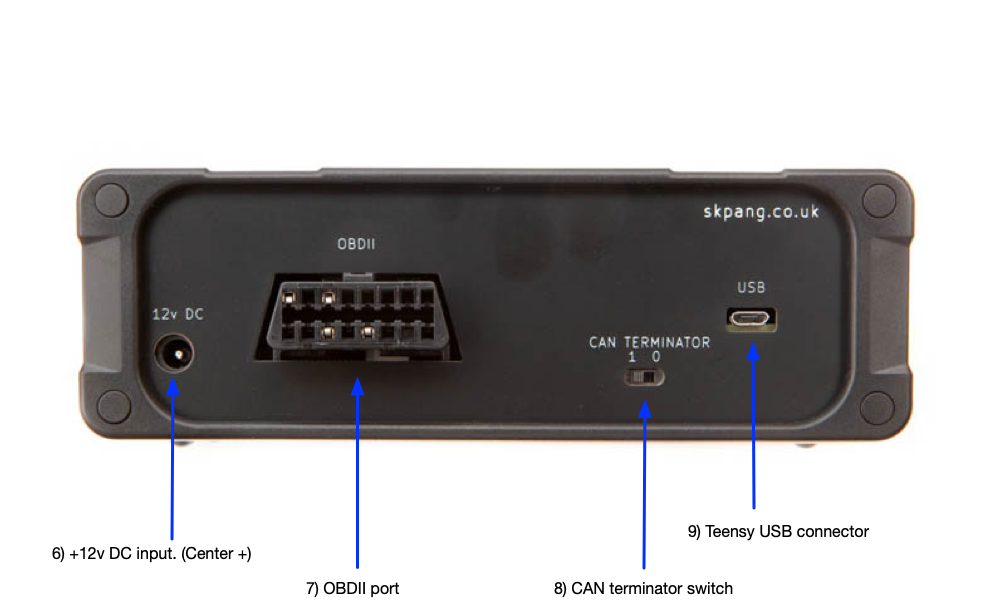

- Female OBDII socket with 12v supply to interface

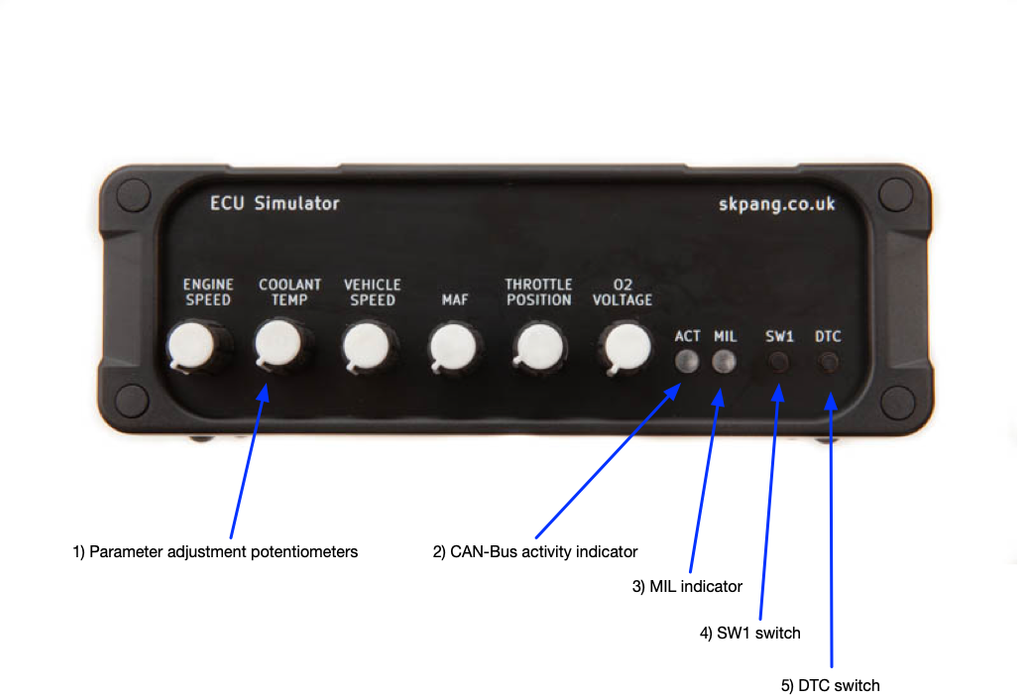

- 6x potentiometers for PID adjustment
- 12v supply. External 12v PSU included with UK, US, EU AU plug
- Firmware Features :
- SAE standard J1979. PIDs partially implemented. Mode 01, 02, 03
- Adjustable PID parameters via potentiometers
- Engine RPM
- Throttle position
- Vehicle speed
- Coolant temperature
- MAF airflow sensor
- O2 sensor voltages
- Setting and clearing Diagnostic Trouble Codes (DTC)
- Open source firmware, other PIDs can be added
