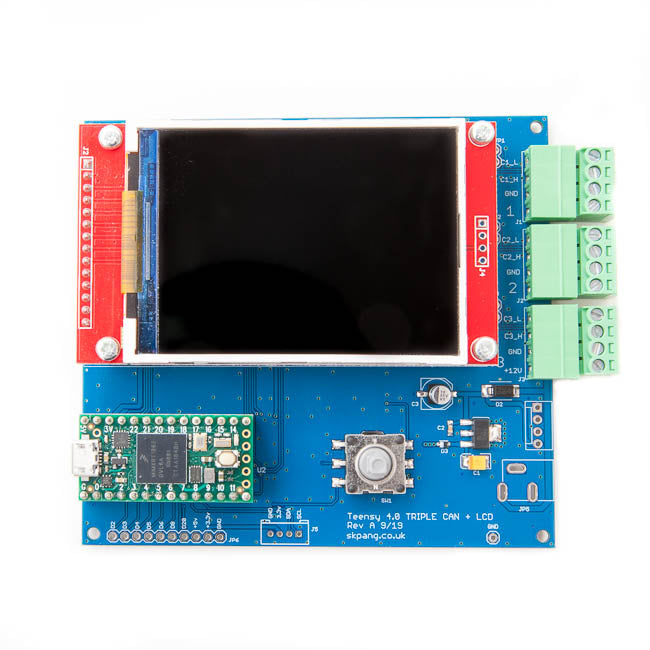

Teensy 4.0 Triple CAN Board with Teensy 4.0 and 2.8" LCD

This is Teensy 4.0 board with two CAN2.0B and one CAN FD interface and a large 2.8" colour TFT LCD. It can be powered by an external +12v DC with reverse voltage protection.

• Teensy 4.0 (installed)
• On board voltage regulator (Input voltage  range 7v to 12v)
• Reverse supply voltage protection
• 120R terminator
• 2.8" TFT LCD
• Two CAN 2.0B and one CAN FD connection
• 5-way navigation joystick

• Schematic
• Demo software
