Teensy 4.1 Triple CAN Board with 240x240 IPS LCD - Rev C

Teensy 4.1 Triple CAN Board with 240x240 IPS LCD - Rev C

£110.40 inc VAT
£92.00 - £92.00
£92.00
£92.00 - £92.00
£92.00
ex VAT
SKU T41-3XCAN240x240LCD-REV-C

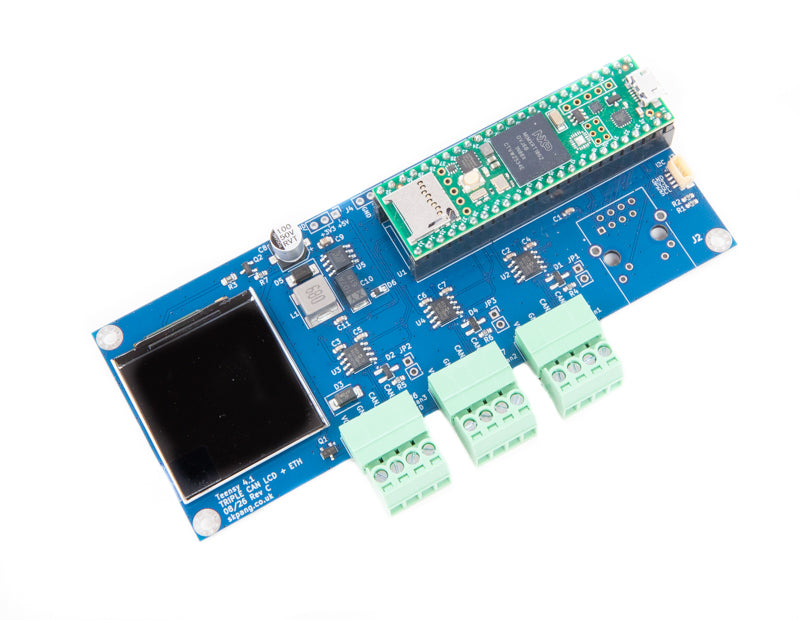

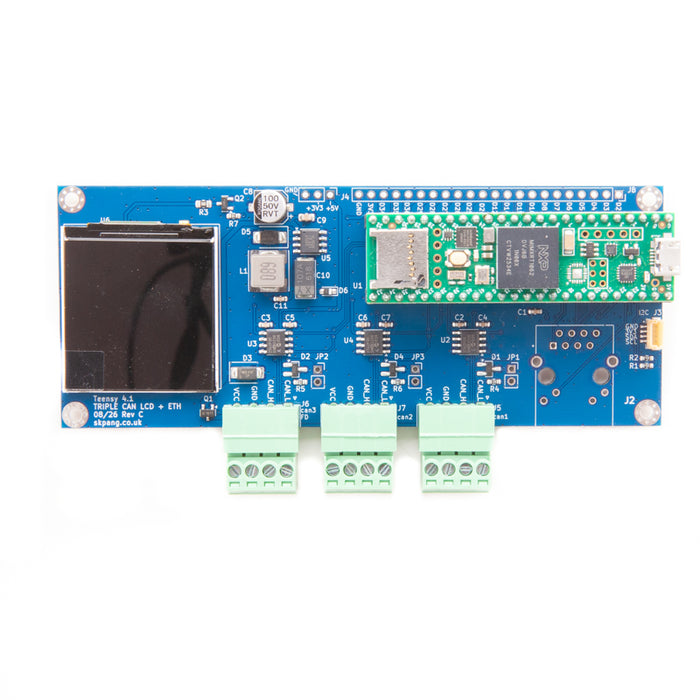

This is a Teensy 4.1 board with triple CAN connections. Two CAN 2.0B and one CAN FD. It can be powered by an external 7v to +24v DC with reverse voltage protection. Included is also a 240x240 wide angle IPS TFT LCD display.

Features
  • Teensy 4.1 (installed)
  • On board SMPS (Input voltage  range 7v to 24v)
  • Reverse supply voltage protection
  • 120R terminator
  • Two CAN 2.0B and one CAN FD connection
  • 1.54" 240x240 wide angle IPS TFT LCD display (installed)
  • I2C connector
