PiCAN-M with CAN-Bus Micro-C and RS422 Connector (no SMPS)

£71.88 inc VAT
Original price £59.90 - Original price £59.90
Original price
£59.90
£59.90 - £59.90
Current price £59.90
ex VAT
SKU RSP-PICAN-M


NMEA 2000

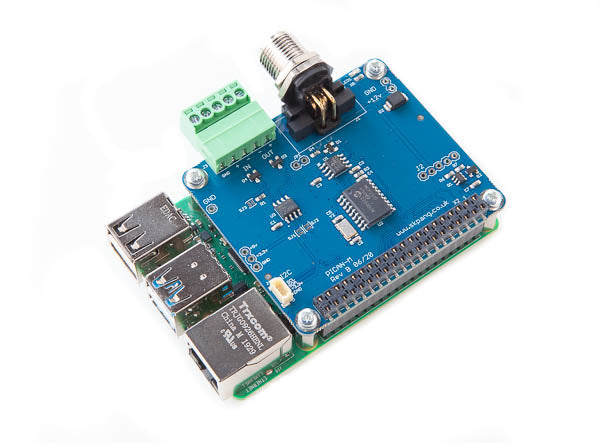

This is a PiCAN-M with RS422 and Micro-C connector. The RS422 is via a 5 way screw terminal. The CAN-Bus connection is via Micro-C connector.

This board does not include the 3A SMPS.



Features
  • CAN connection via Micro-C connector
  • 120Ω terminator ready
  • SocketCAN driver
  • appears as can0 to application
  • RS422 via 5-way screw terminal
  • appears as ttyS0 to application
  • LED indicator (GPIO22)
  • Qwiic (I2C) connector for extra sensors
  • Compatible with OpenCPN, OpenPlotter, Signal K and CANBoat

Documents
Distributors
  • Europe





    Raspberry Pi not included.
    Photo above shows GPS with RS422 connection and BME280 Atmospheric Sensor with Qwiic connection. (Other hardware shown not included).
    Photo above shows  GPS device in use with OpenCPN.
    Photo above shows PiCAN-M board connected to a CAN-Bus network. (Other hardware shown not included).
    Photo above shows temperature reading from a Yacht Devices Digital Thermometer  YDTC- 13N on Signal K instrument panel.
